The HPM90 is a small powerhouse and is easy to move with its light transportation weight.
The compact geometry of the base machine and the parallelogram system allow us to rapidly convert the rig from transport to working configuration.
Mounted on CAT® 313, equipped with CAT C3.6 engine, which meets U.S. EPA Tier 4 Final, EU Stage V and Japan 2014
The HPM55B is a small powerhouse and is easy to move with its light transportation weight.
The compact geometry of the base machine and the parallelogram system allow us to rapidly convert the rig from transport to working configuration.
Mounted on CAT® 317, equipped with CAT C3.6 engine, which meets U.S. EPA Tier 4 Final, EU Stage V and Japan 2014
The HPM25B Short Mast is a premier foundation drilling rig engineered for maximum versatility on the CAT 315 base, delivering 35 kNm of rotary torque and 72 kN of winch thrust. This compact powerhouse features a zero-tail swing design and rubber tracks, making it the ultimate solution for utility foundations and restricted jobsites near power lines. Powered by a CAT C3.6 Stage V engine, it guarantees high-performance rock drilling while maintaining compliance with global emission standards.
Its innovative HPM technology allows for seamless conversion from a short configuration to a standard mast for increased depth requirements. Equipped with a dozer blade for superior stability, this machine excels in standard foundation projects where maneuverability is critical.
The HPM25B zero tail swing drilling machine is engineered for maximum versatility, combining the agility of a compact excavator with heavy-duty bore power. Its durable rubber tracks ensure superior site access on sensitive terrain, while the integrated dozer blade provides essential stabilization for precise, high-torque drilling operations in confined urban spaces.
HPM 25B’s modular design allows for quick conversion between a Smart Mast (13m depth) for low-clearance tasks and a Long Mast (17m depth) for deep foundation projects, making it the ultimate multi-purpose solution for urban piling and soil investigation.
Mounted on a CAT® 315, equipped with CAT C3.6 engine.
The HPM55B Short Mast is a small powerhouse and is easy to move with its light transportation weight.
The compact geometry of the base machine and the parallelogram system allow us to rapidly convert the rig from transport to working configuration.
Mounted on CAT® 317, equipped with CAT C3.6 engine, which meets U.S. EPA Tier 4 Final, EU Stage V and Japan 2014
The HPM90 Short Mast is cylinder crowd compact rig, easy to operate. The right equipment to those companies who are looking for performance and ability to drill inside buildings or under infrastructures.
Like any other HPM, the HPM90 Short Mast has a modular mast designed the conversion of the rig from standard to low-headroom. The solution enables to rapidly convert the rig machine into the LHR configuration, reaching 5 m (16’5”) of minimum operating height.
Mounted on a CAT® 313 base and its dependable CAT C3.6 engine.
The compact geometry of the base machine and the parallelogram system allow to rapidly convert the rig from transport to working configuration.

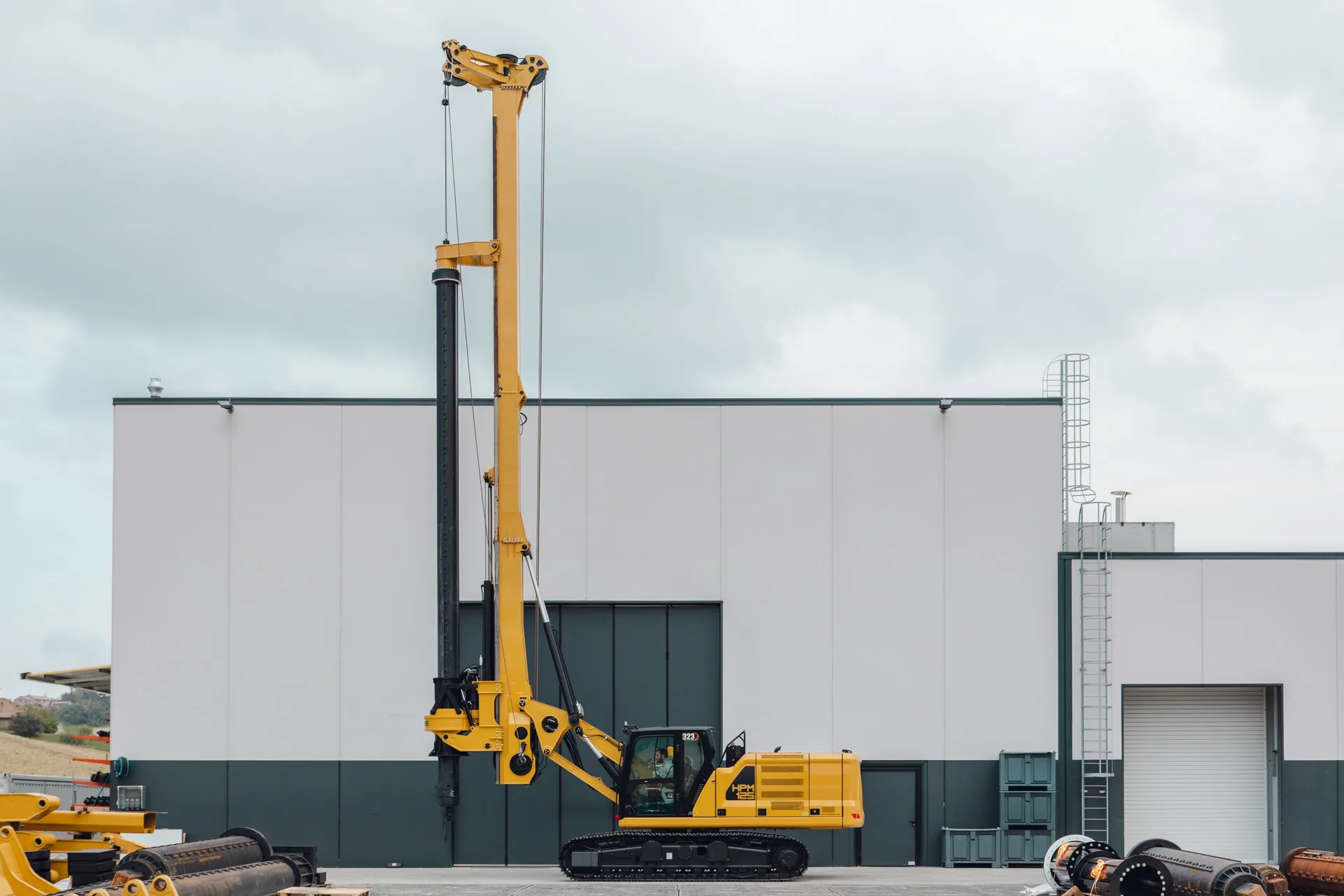

HPM125 is a strong, powerful drilling machine mounted on the new CAT 323 Narrow base and CAT expandable undercarriage.
The compact dimension and the ease of setup, the HPM125 is a machine with exceptionally low operating and haulage cost.
Equipped with a CAT C7.1 engine that meets U.S. EPA Tier 4 Final and EU Stage IV, together with the retractable undercarriage is the result of a machine with low operating cost and ease of transport.
With its innovative drilling system, extendable undercarriage, and single-load capability, the HPM100J Short Mast is designed to work under very limited headroom situation: inside buildings, under bridges and infrastructures.
When the articulation is moved forward, the machine reach a working height of just 5m
The machine can be transported in one load, reducing transportation costs and assembly time.
The HPM100J Short Mast is mounted on a CAT 313 base, equipped with a CAT C3.6 engine.
HPM125 Short Mast retains the same strength and compactness as the HPM125 but in a lower format. The HPM 125 Short Mast is a strong, powerful drilling machine mounted on the new CAT 323 Narrow base and CAT expandable undercarriage.
With the compact dimensions and the ease of setup, the HPM125 Short Mast is a machine with exceptionally low operating and haulage costs.
Equipped with a CAT C7.1 engine that meets U.S. EPA Tier 4 Final and EU Stage IV, together with the retractable undercarriage, results in a machine with low operating cost and ease of transport. The HPM 125 Short Mast is the right machine to perform most mid-size civil foundation projects.
With revolutionary components and classic geometries, the HPM100J delivers big performance within a small footprint.
Even in this standard mast configuration, the machine can be transported in one load, reducing transportation costs and assembly time.
Convertible to short mast in quick time, the HPM100J standard mast can be equipped with various piling applications like DTH, hammer, CFA, soil mixing etc.
Particularly used on utility works where space and overhead height are limited.
The HPM100J is mounted on a CAT 313 base, equipped with a CAT C3.6 engine.

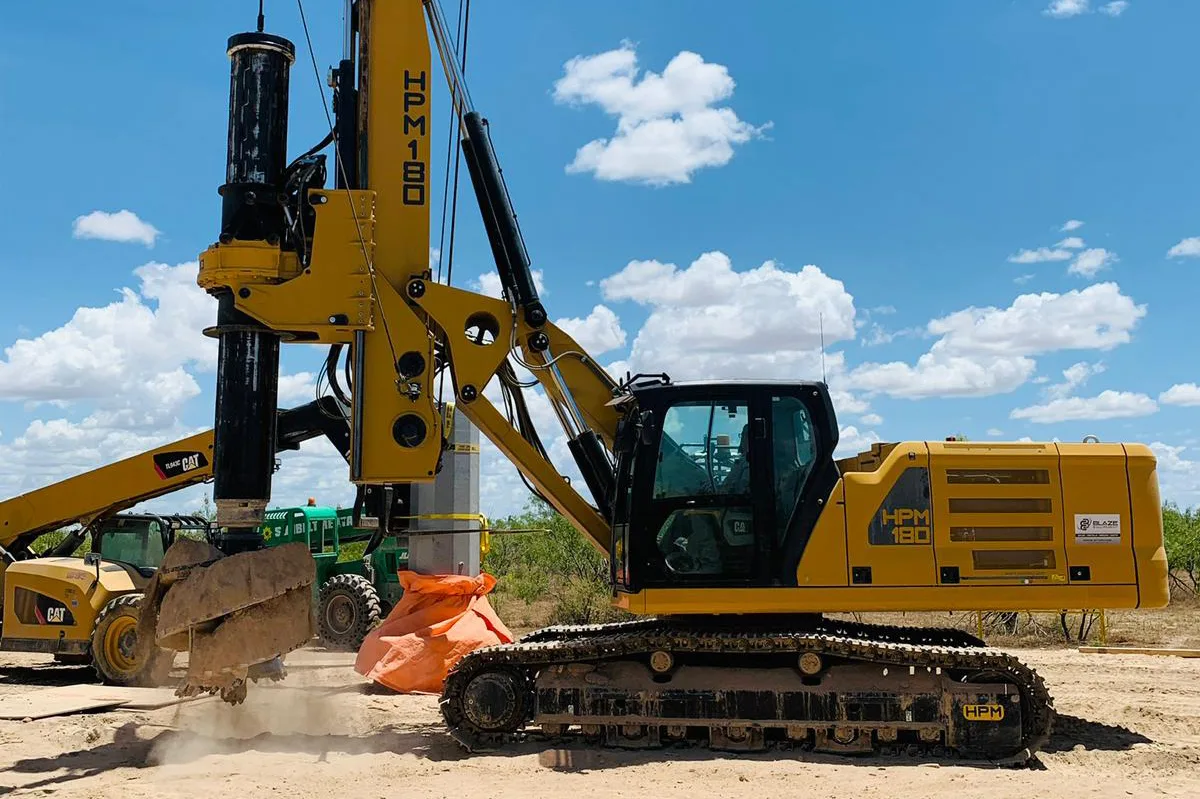

Fast and powerful, the strength of the HPM180 range is in its power and stability coupled with incredible speed in moving from site to site without assembly and disassembly steps during transport.
HPM180 Short Mast is mounted on a CAT 330 base with a CAT C7.1 engine.
Fast and powerful, the strength of the HPM180 range is in its power and stability coupled with incredible speed in moving from site to site without assembly and disassembly steps during transport.
To the classic HPM180 we have added an expandable CAT undercarriage.
HPM180+ is mounted on a CAT 330 base with a CAT C7.1 engine.
A machine suitable not only for conventional drilling but also designed for old piles removal from the ground. Fast in its movement, easy to transport, available in different versions to meet every need. It is not an alien, it is HPM180J.
The HPM180J utilizes high rotary torque to place casings around the pile, while two larger crowd cylinders and a hydraulic foot mast extract it from the ground.
The range of HPM180 has been designed to provide clients with a fast and powerful rig that can move quickly and without assembly and disassembly phases during transport.
HPM180+ is mounted on a CAT 330 base with a CAT C7.1 engine.

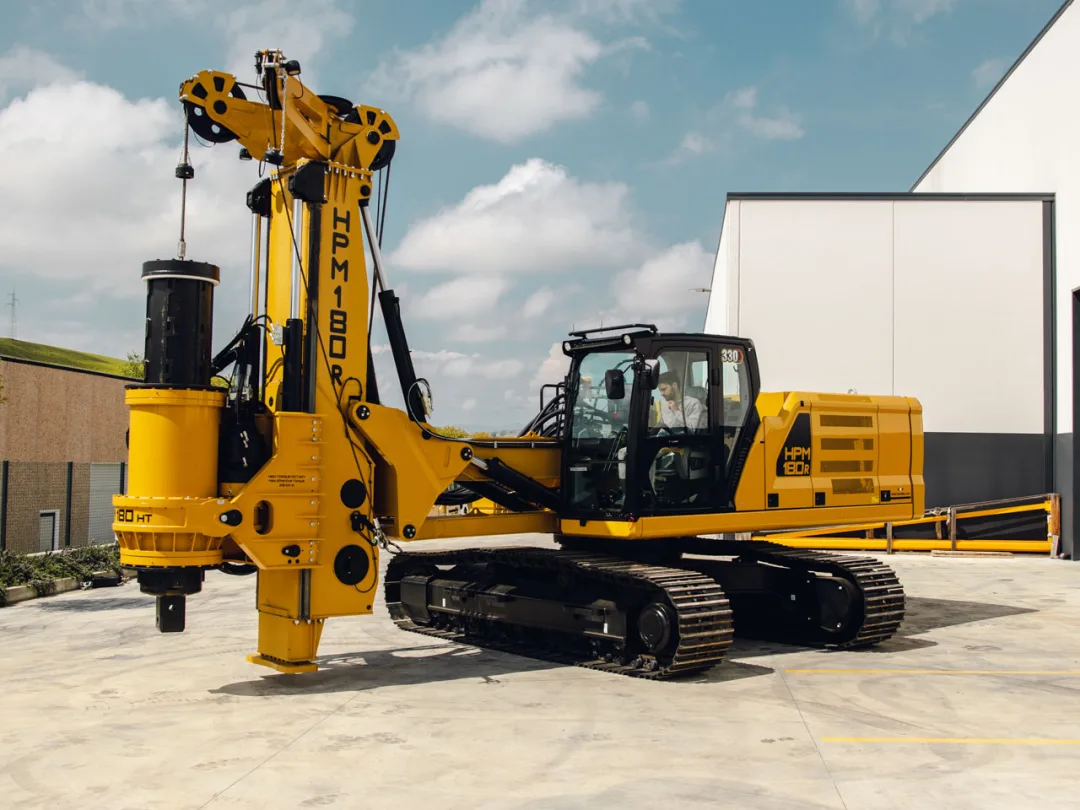

The HPM180R is equipped with high torque rotary, the ideal machine to work with big tools in tough soil condition.
Easy to maintain, easy to move from pile to pile and great stability at any working radius. The HPM180R is one of the most requested drills for utility foundations.

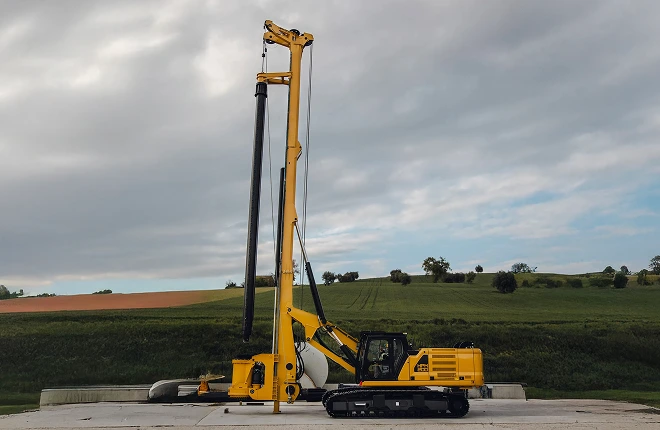

HPM200 Standard can be equipped with long kelly bars allowing you to reach great depths while maintaining a compact size.
A multipurpose rig suitable for various kinds of drilling applications, that can also be easily converted into short mast configuration.

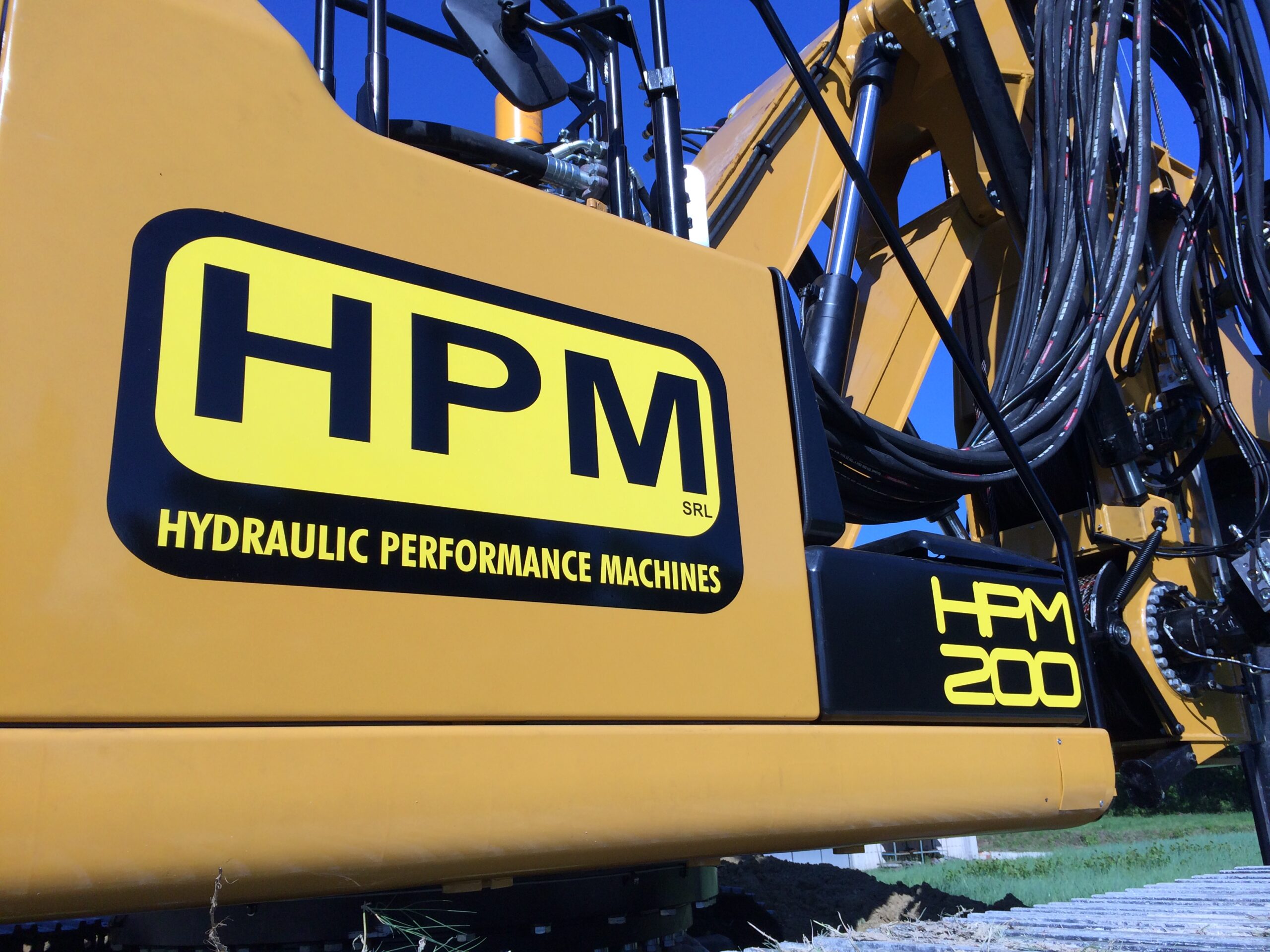

The HPM200 are mounted on CAT 330 NGH base, equipped with CAT C7.1 engine
The HPM200 Crowd Winch System has been designed to drive long casings in challenging ground conditions.
A first-of-its-kind system featuring two dedicated winches, coaxially mounted, for pull and push functionalities.
When in CFA configuration, with the sheave in the very top part, the system efficiently stores and manages wire rope on a second layer, ensuring smooth operation at great stroke.
Mounted on CAT ® 330 NGH base, equipped with a CAT® C7.1 engine, which delivers an ISO power of 205 kW (175 KW Fly Wheel).

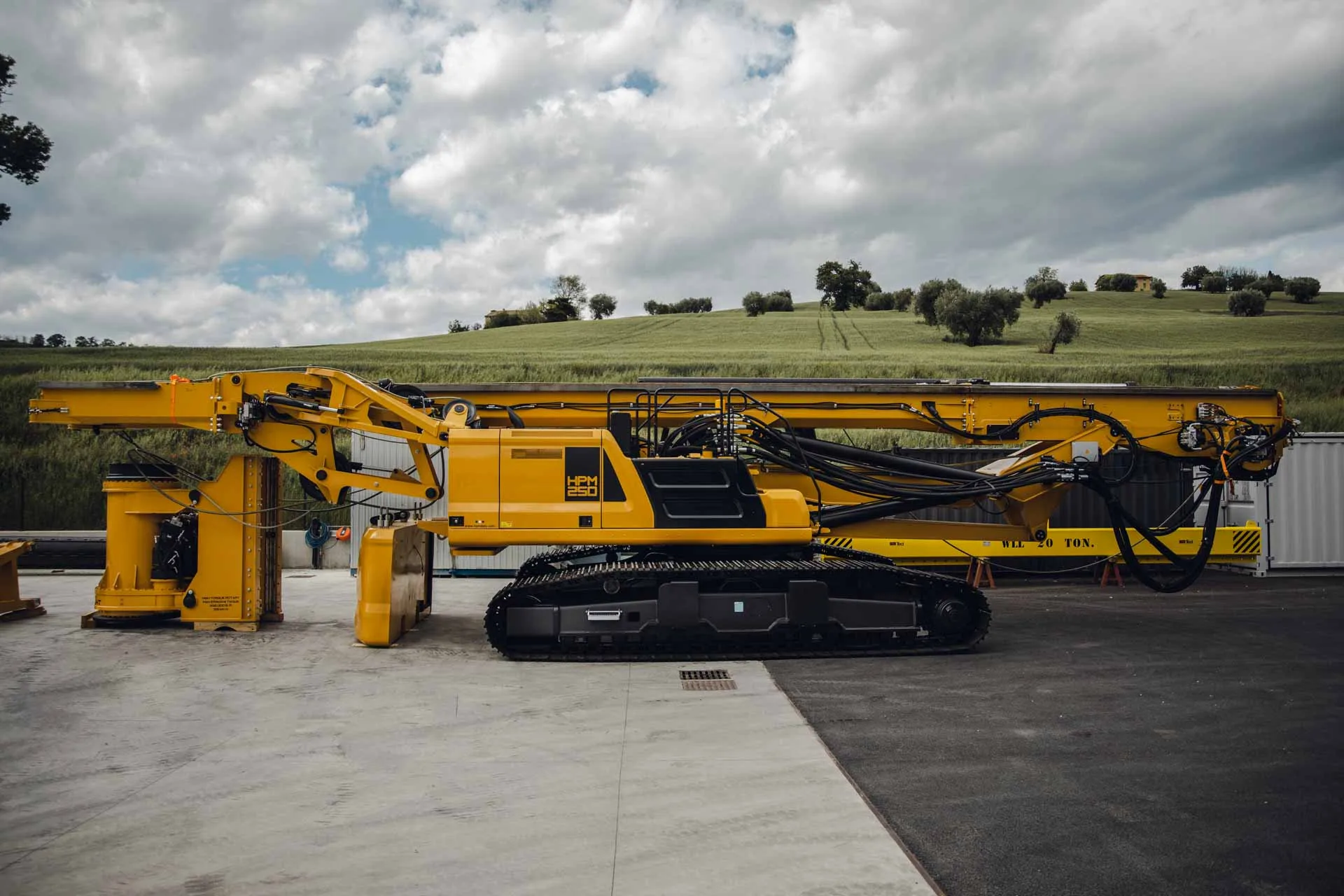

Building on our innovative technology, the HPM250 standard mast maintains the simplicity of the smaller models while proving outstanding drilling performances
Mounted on a CAT 340 excavator base and CAT expandable & heavy-duty undercarriage.
