Key Features
Counterweight Lifting System
This patented feature gives contractors the ability to reduce the overall weight of the rig quickly and easily during the transport phase. Thus, making it possible to utilize a standard-sized trailer and reduce hauling costs and avoid oversizing/overweight permits.
Low-headroom Configuration
This HPM can be quickly and safely converted to a Short Mast configuration allowing it to work in limited height job sites, such as under bridges or below power lines.
Automatic functions
Automatic functions allow the operator to reduce rig-up time and get productivity.
With a push of a button, the operator can make use of automatic functions including Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive.
Specifications

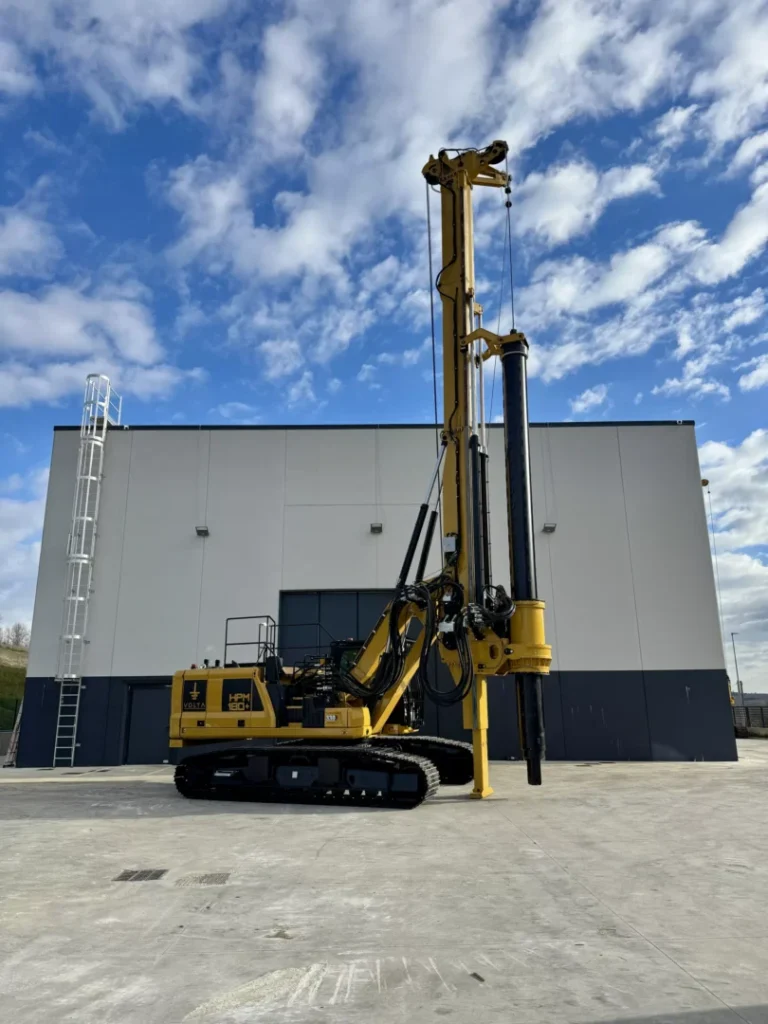

| HPM 180+ Specifications | |
|---|---|
| Base | CAT®330 |
| Drilling Depth | 46m |
| Drilling Diameter (under the mast) | 3000 mm |
| Operating Weight | 53,700 kg |
| Rotary Torque | 254 kNm |
| Max. Effective Torque | 216 kNm |
| Working Speed | 9–27 rpm |
| Discharge Speed | 45–110 rpm |
| Main Winch Pull | 180kN |
| Transport Weight | 53,700 kg |
| Transport Width | 3000 mm |
| Transport Height | 3505 mm |
| Crowd Type | Cylinder Crowd Pull |
| Max. Crowd Force | 400 kN |
| Crowd Stroke | 4300 mm |
