Key Features
Automatic functions
Automatic functions allow the operator to reduce rig-up time and get productivity.
With a push of a button, the operator can make use of automatic functions including Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive.
Counterweight Lifting System
This HPM can be assembled by itself without the need of assistant cranes.
This patented feature gives contractors the ability to reduce the overall weight of the rig quickly and easily during the transport phase. Thus, making it possible to utilize a standard-sized trailer and reduce hauling costs and avoid oversizing/overweight permits.
Long Mast Configuration
By adding mast extension and longer kelly bar, this machine can be quickly converted into a standard height machine, allowing it to perform greater depths and be used for different drilling applications, such as CFA, soil mixing, Displacement, etc.
Specifications

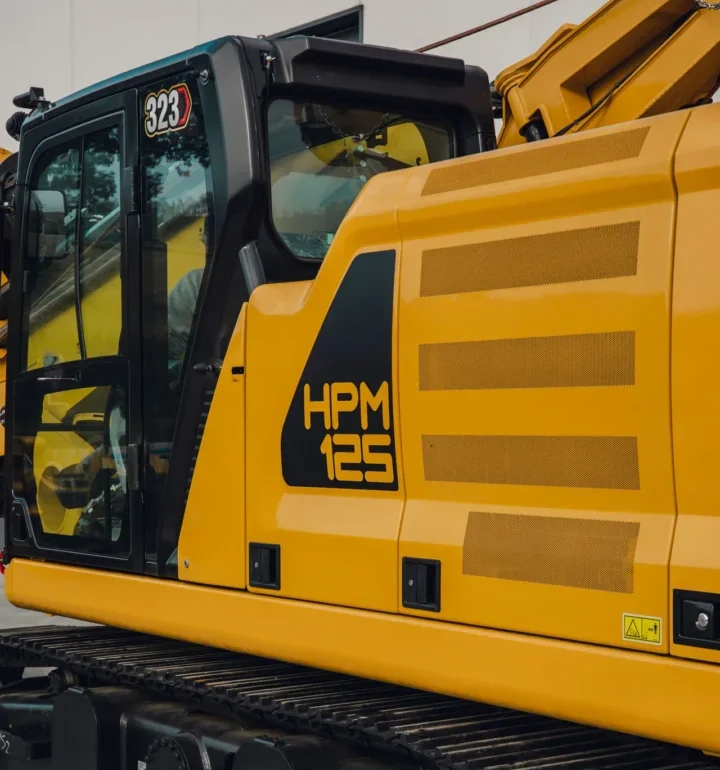

| HPM 125 Short Mast Specifications | |
|---|---|
| Base | CAT®323 |
| Drilling Depth | 14.5 m |
| Drilling Diameter | 1800 mm |
| Operating Weight | 32,400 kg |
| Rotary Torque | 153 kNm |
| Max. Effective Torque | 130 kNm |
| Working Speed | 7–28 rpm |
| Discharge Speed | 40–120 rpm |
| Main Winch Pull | 180 kN |
| Transport Weight | 32,400 kg |
| Transport Width | 2540 mm |
| Transport Height | 3400 mm |
| Crowd Type | Cylinder Crowd Pull |
| Max. Crowd Force | 270 kN |
| Crowd Stroke | 1980 mm |
