Key Features
Counterweight Lifting System
This patented feature gives contractors the ability to reduce the overall weight of the rig quickly and easily during the transport phase. Thus, making it possible to utilize a standard-sized trailer and reduce hauling costs and avoid oversizing/overweight permits.

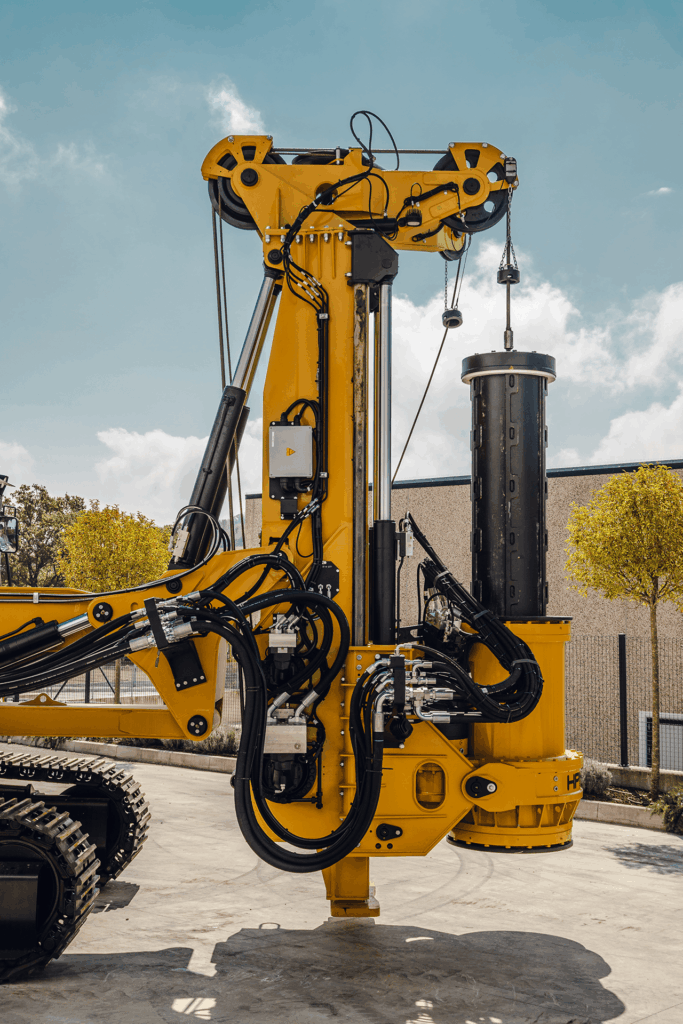

Long Mast Configuration
By adding mast extension and longer kelly bar, this machine can be quickly converted into a standard height machine, allowing it to perform greater depths and be used for different drilling applications, such as CFA, soil mixing, Displacement, etc.

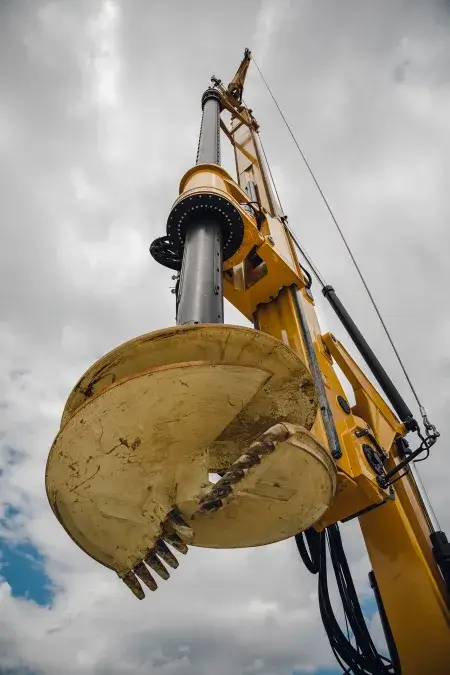

Automatic functions
Automatic functions allow the operator to reduce rig-up time and get productivity.
With a push of a button, the operator can make use of automatic functions including Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive.
Specifications
| HPM 90 Specifications | |
|---|---|
| Base | CAT®313 |
| Drilling Depth | 28,5 m |
| Drilling Diameter | 1500 mm |
| Operating Weight | 24,500 kg |
| Rotary Effective Torque | 90 kNm |
| Max. Effective Torque | 90 kNm |
| Working Speed | 8–28 rpm |
| Discharge Speed | 50–125 rpm |
| Main Winch Pull | 120 kN |
| Transport Weight | 24,500 kg |
| Transport Width | 2500 mm |
| Transport Height | 3460 mm |
| Crowd Type | Cylinder Crowd System |
| Max. Crowd Force | 280 kN |
| Crowd Stroke | 1370 mm |
