Key Features
Automatic functions
Automatic functions allow the operator to reduce rig-up time and get productivity.
With a push of a button, the operator can make use of automatic functions including Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive.
Expandable Tracks
The retractable undercarriage allows the reduction in width of the machine for transport phases, reducing hauling related costs and avoiding transport permits. Once expanded, the undercarriage provides great stability at any working radius for a 360° drilling capability.
Drilling Cruise Control
The HPM software includes the enabling of the drilling cruise control. When the system is enabled, the operator can preselect the rotary gear for its speed. With a push of a button the system can be activated, and the operator can also lock the crowd pressure for a complete automatic drilling mode. Safety systems can disable the function immediately.
Specifications

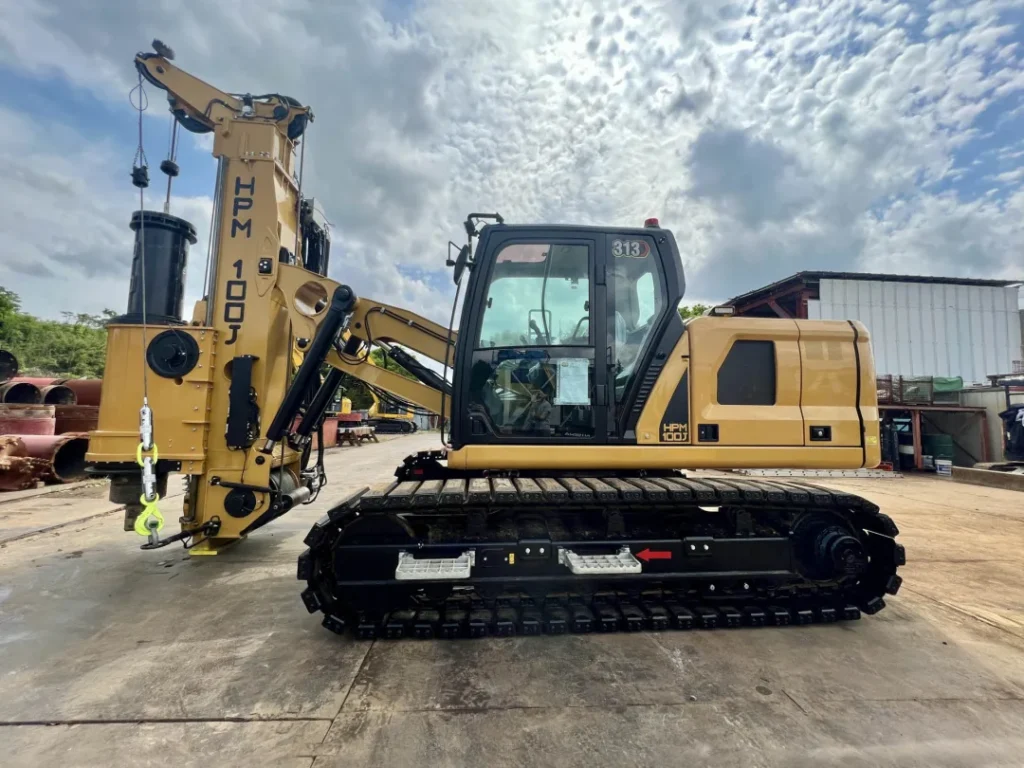

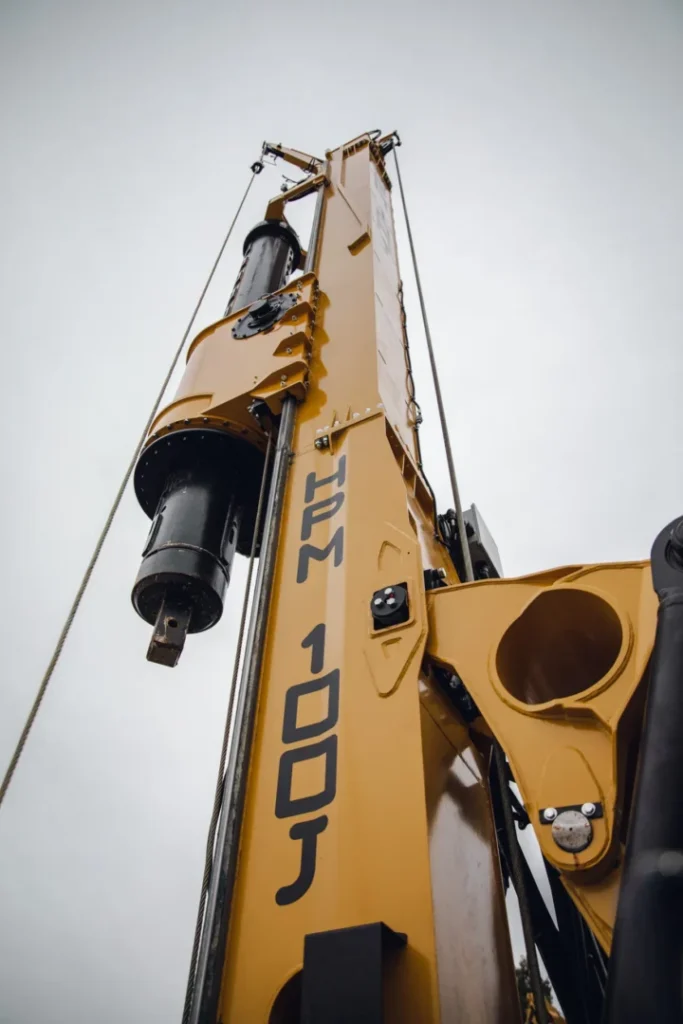

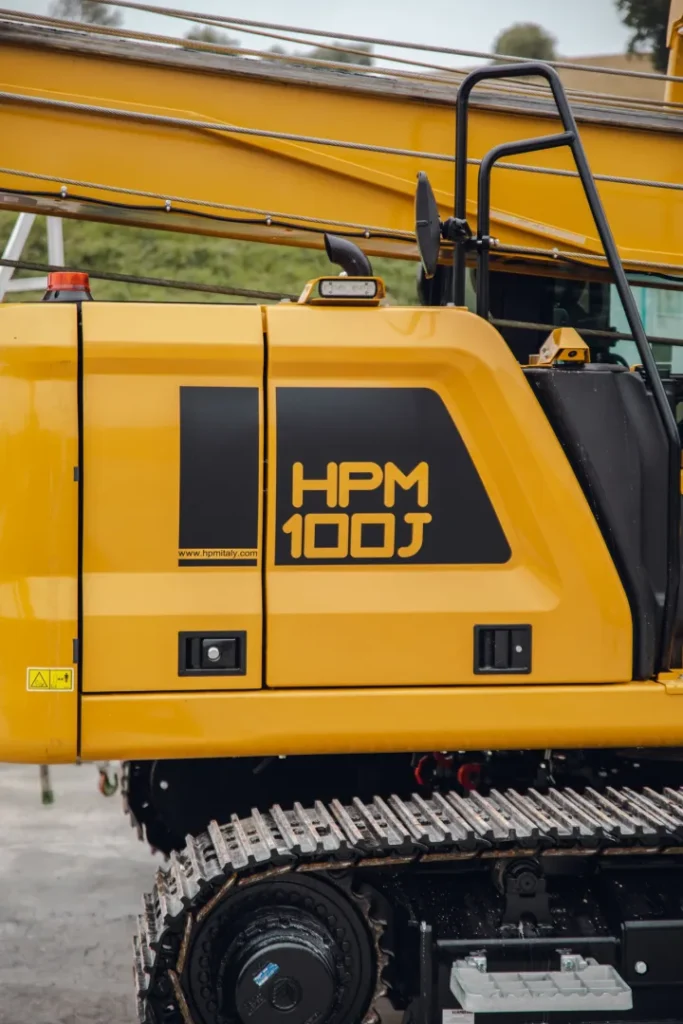

| HPM 100J Short Mast Specifications | |
|---|---|
| Base | CAT®313 |
| Drilling Depth | 11 m |
| Drilling Diameter | 1000 mm |
| Operating Weight | 24,500 kg |
| Rotary Torque | 123 kNm |
| Max. Effective Torque | 105 kNm |
| Working Speed | 8–28 rpm |
| Discharge Speed | 50–125 rpm |
| Main Winch Pull | 120 kN |
| Transport Weight | 24,500 kg |
| Transport Width | 2500 mm |
| Transport Height | 3030 mm |
| Crowd Type | Winch with Pull in 3° |
| Max. Crowd Force | 201 kN |
| Crowd Stroke | 1524 mm |
