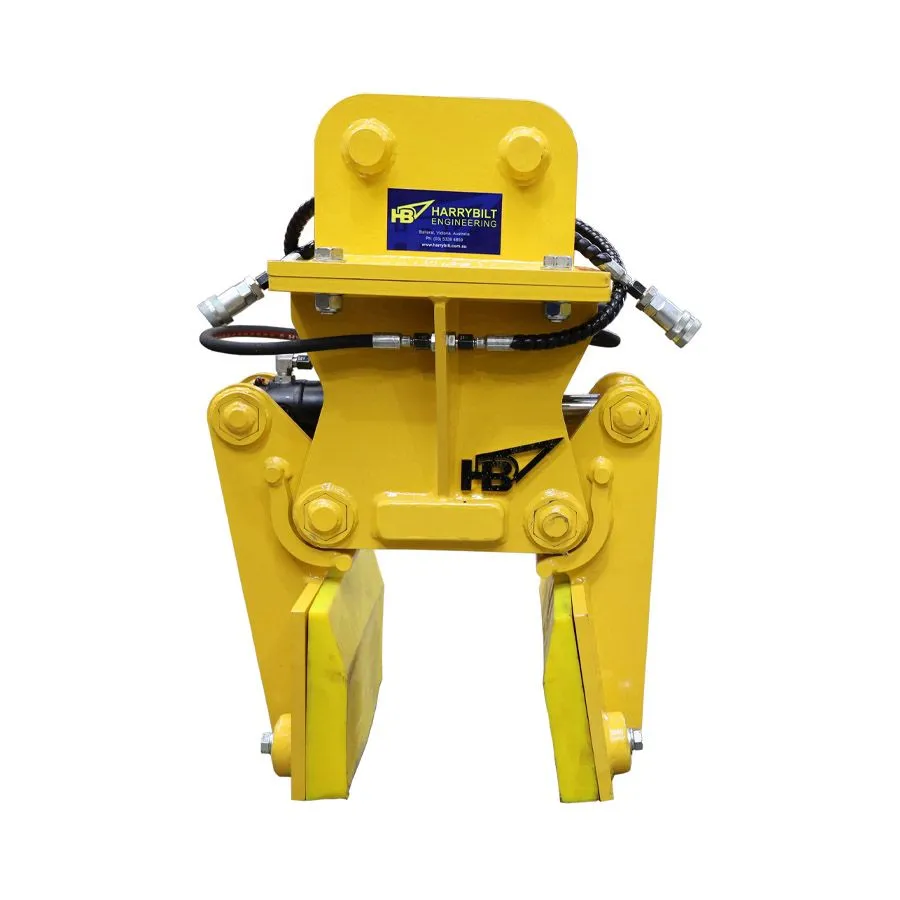

HARRYBILT ENGINEERING MINI BULLANT
This product is a mini version of the Bullant.
Suitable for Light Rail Excavator ranges, this grab can be used for moving or side insertion of all types of sleepers.
Grab
THE RANGE

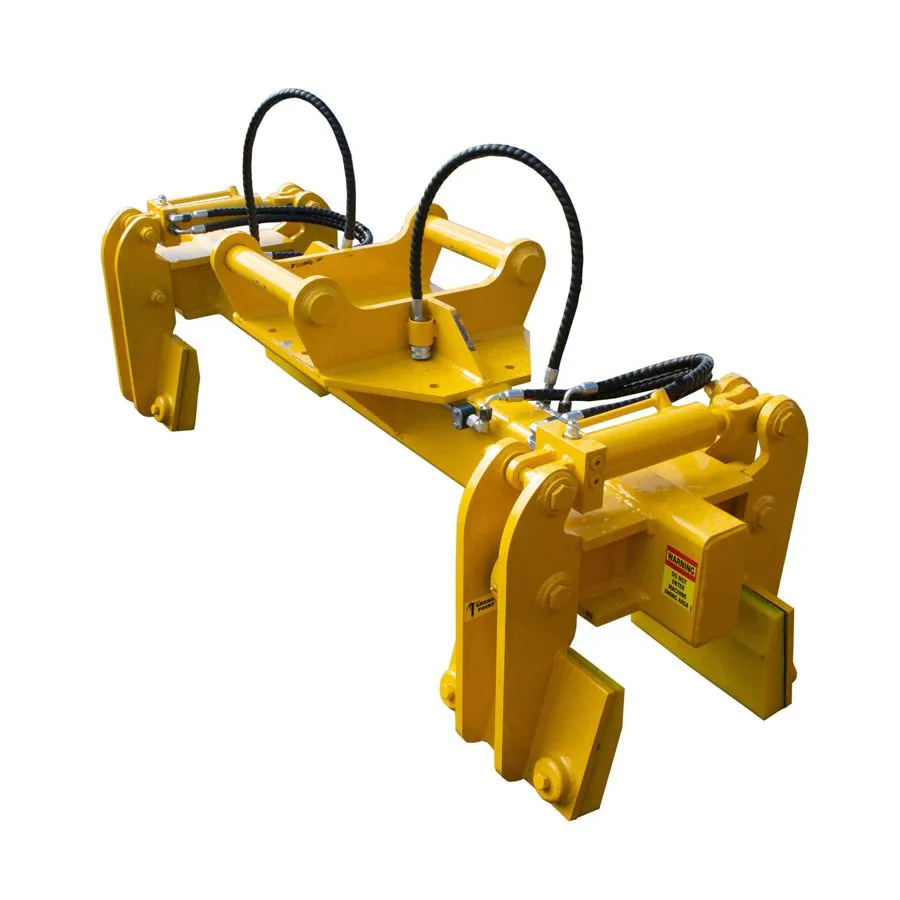

HARRYBILT ENGINEERING POINTS BREARER GRAB
This grab has been designed to pick up points bearers up to 6 meters in length.
- Tare: 370kg
- WLL: 1800kg

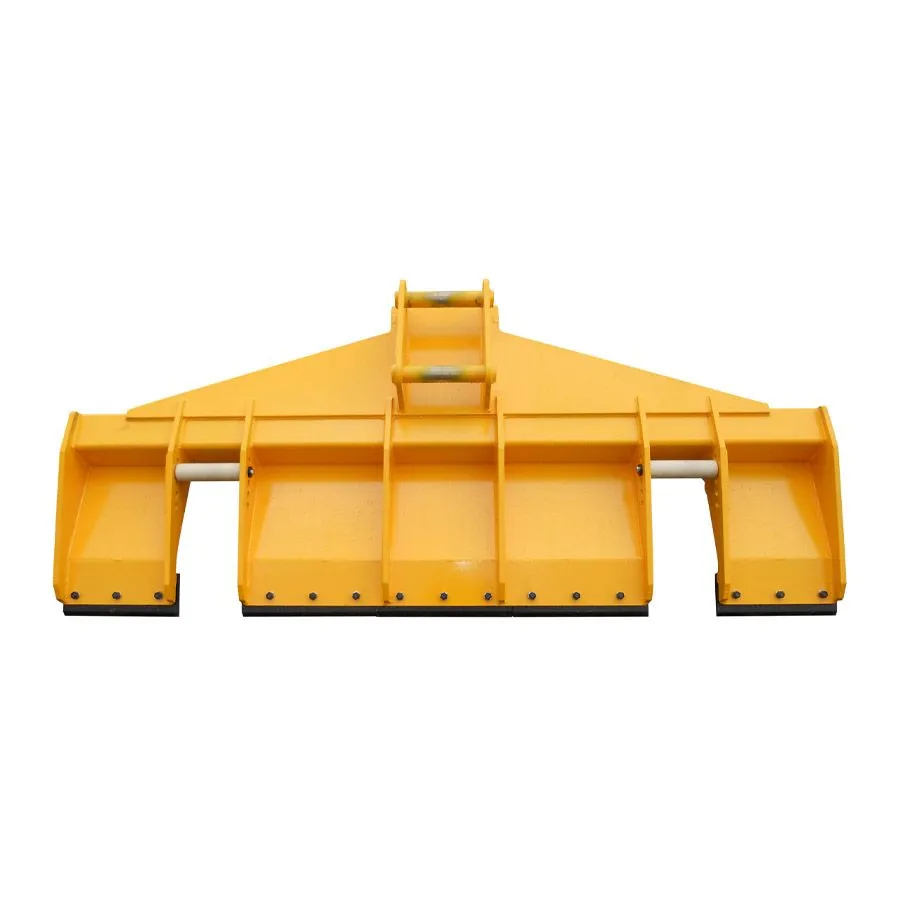

HARRYBILT ENGINEERING PLATYPUS WIDE BLADE
Sleeper Replacement Work
The Large Platypus with 2750 wide blade, with Bullant Multi Purpose Grab, has been designed by Harrybilt Engineering for sleeper replacement work.

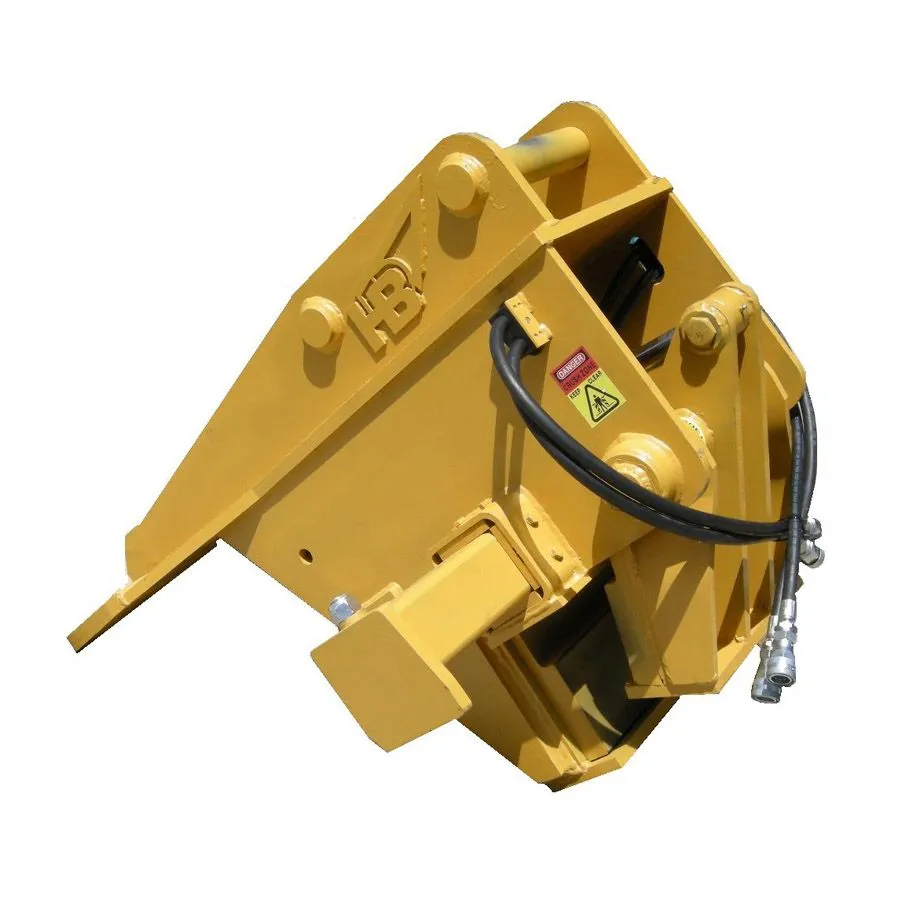

HARRYBILT ENGINEERING PLATYPUS CLIP PUSHER
The addition of the clip pusher in this model allows for clips on the sleeper to be fixed to the inside of the rail.
A fast and efficient method saves manual handling, time and money.
Weight (Tare): 440kg
Height: 1.1 Metres
Width (Standard Blade): 0.63 Metres
Length (Standard Blade) 1.2 Metres
Working Load Limit: 400kg (1 x 400kg Concrete Sleeper)
Note: Not to exceed the WLL of the excavator / boom the Platypus is fitted to.

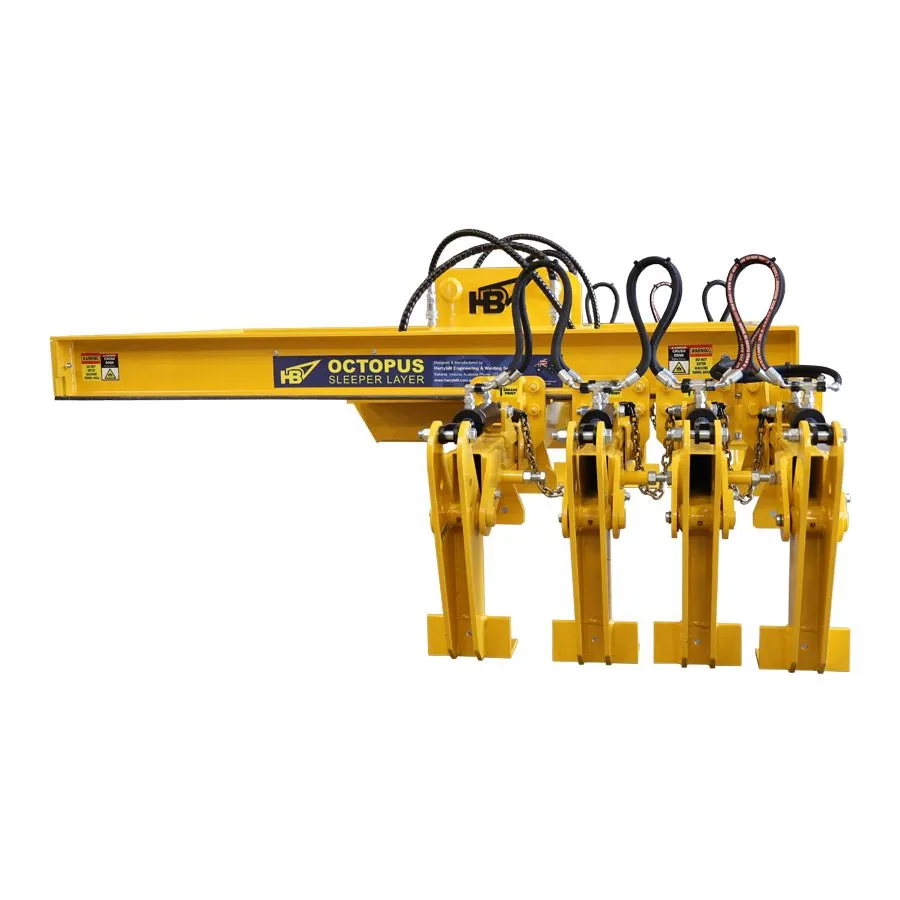

HARRYBILT ENGINEERING OCTOPUS
The ‘Octopus’ Concrete Sleeper Handler range has been designed to simplify and speed up the safe laying of concrete sleepers for rail and tram networks. First designed in 2003 to meet a niche market it has proved itself as a reliable performer and has contributed to many hundreds of kilometres of new rail track.
The Octopus 4 Concrete Sleeper Handler can be used with a minimum 12 ton excavator. Note: Maximum Drop Centres for this Octopus are 700mm.
The Octopus 6 is able to lift and lay 6 sleepers it suits the mid range size of excavators above 16 ton. It is recommended that this attachment be used with a Tilt Rotating Head (or equivalent) for maximum efficiency and manoeuvrability
The Octopus 8 attachment can lift and lay 8 sleepers at a time your choice of this specialist piece of equipment is an investment in the most cost effective method of laying high volumes of concrete sleepers accurately while minimising manual handling inputs.

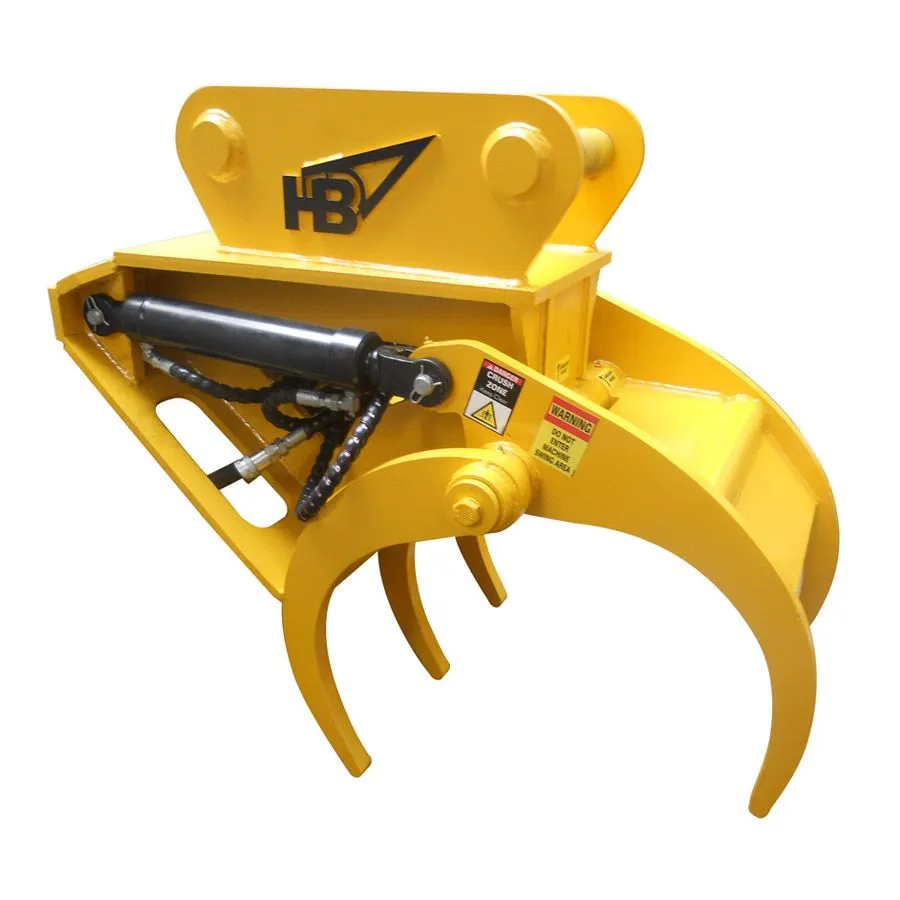

HARRYBILT ENGINEERING YABBY GRAB
This attachment is designed to be used with a Tilt Rotating Head to maximise its versatility over a wide range of operations in areas such as Environmental Waste Management, Civil Works, Building Industry and Landscaping & Grounds Management.
It is designed to be as light as possible to make it attractive as an attachment for excavators, backhoes etc in order that their lifting capacity is not overly reduced, while at the same time being as strong as possible to provide trouble free operation throughout its working life.
The use of this attachment will reduce the need for manual handling inputs thus minimising the OH&S risks to persons engaged in the many operations this machine may undertake.
- To suit 5 ton excavator
- Tare: 145kg
- WLL: 150kg
- Max clamp dia.: 700mm
- Min clamp dia.: 100mm
- Max working pressure: 3000psi
- Max flow rate: 11 litres/min at 100psi
HARRYBILT ENGINEERING BULLANT SLEEPER GRAB
A general purpose grab which can be used for moving or side insertion of steel, wood or concrete sleepers.
Includes rubber pads which can be removed if necessary to suit individual user requirements/applications.
Weight: 350kg

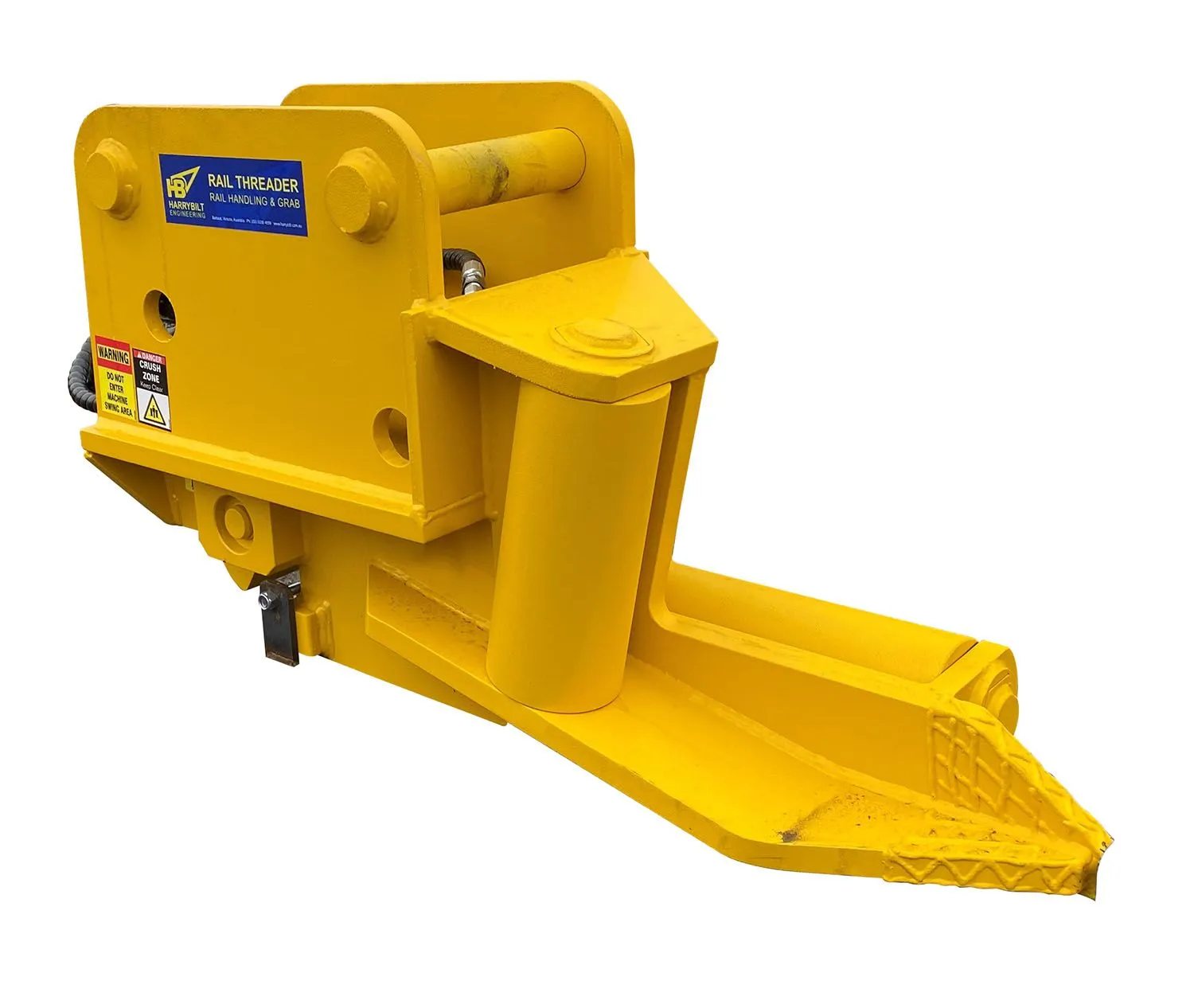

HARRYBILT ENGINEERING RAIL THREADER HEAVY
This Rail Maintenance Attachment has been designed to withstand the harshest working conditions. While the original Rail Threader is reliable and efficient, there was demand for the attachment to last longer and have a higher lifting capacity for larger excavators.
This new development has made this the perfect Rail Maintenance Attachment for laying and maintaining many hundreds of kilometres of rail track, while also being a longer lasting product in the tough Australian conditions.
Any original Rail Threader can be upgraded to be Heavy Duty.

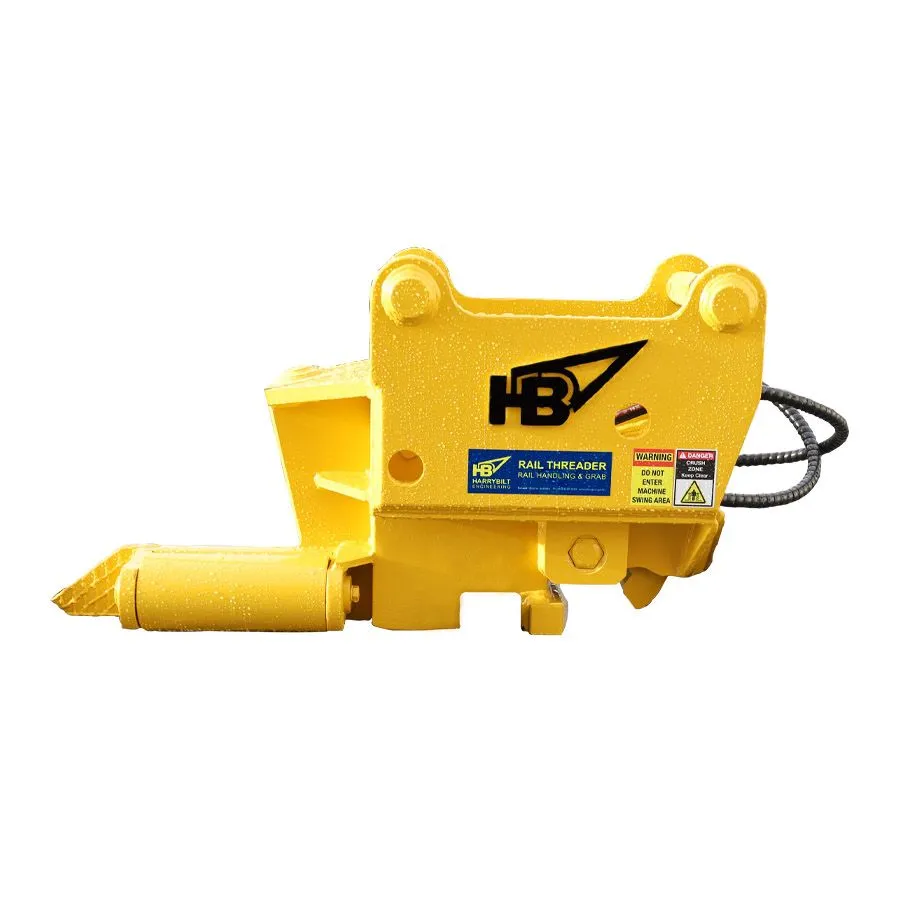

HARRYBILT ENGINEERING RAIL THREADER
Developed by Harrybilt Engineering, this piece of equipment has been specifically designed to provide an efficient method of handling rail. First designed in 2007 to meet a niche market, it has proved itself as a reliable performer and has contributed to the laying and maintenance of many hundreds of kilometres of rail track.
The grab will grip under the head of the rail for lift. The hardened point allows the threader to slide under rail, even through ballast and the vertical and horizontal rollers provide low resistance support so the threader can slide along the rail providing lift of the rail on or off the sleeper.
This reduces manual handling and the O H & S issues related to moving heavy rail.
It is recommended that the Rail Threader be used with a Rotating head fitted to the excavator.

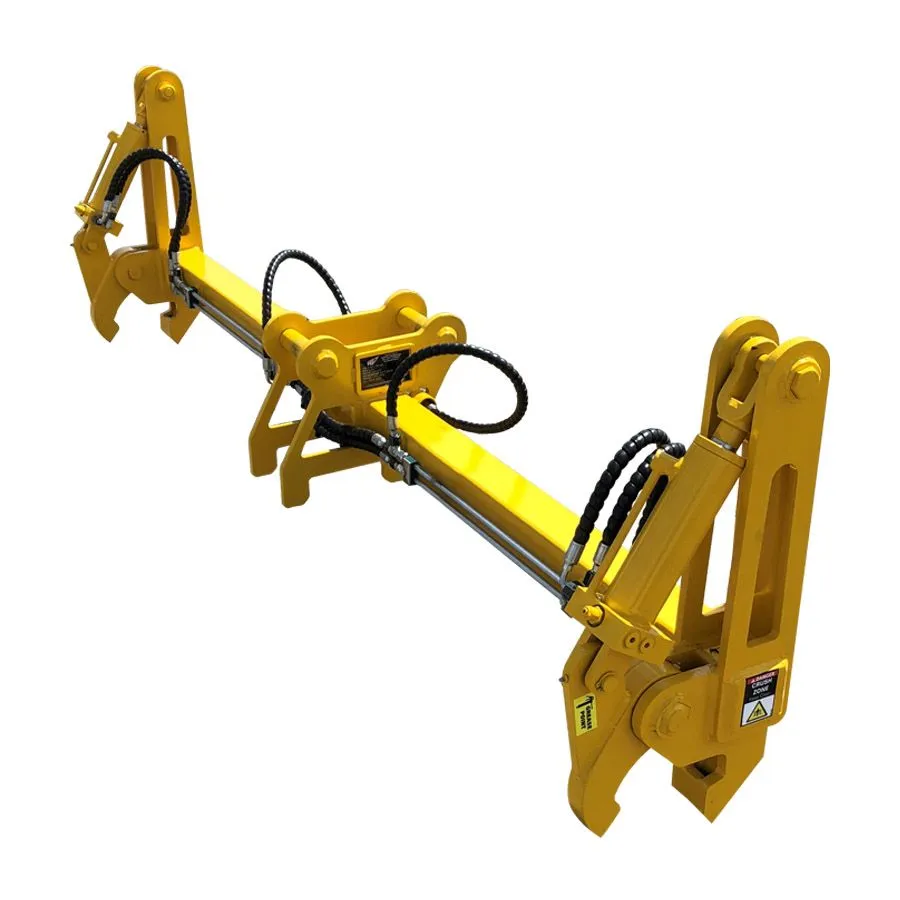

HARRYBILT ENGINEERING LIGHT WEIGHT RAIL GRAB
The Light Weight Rail Grab has been designed by Harrybilt Engineering to pick up and manoeuver lengths of rail.
It features SWL of 750 Kg, is ideal for 5t – 8t Excavators, is 2.5m in length between centers of grabs and weighs approximately 170 Kg.

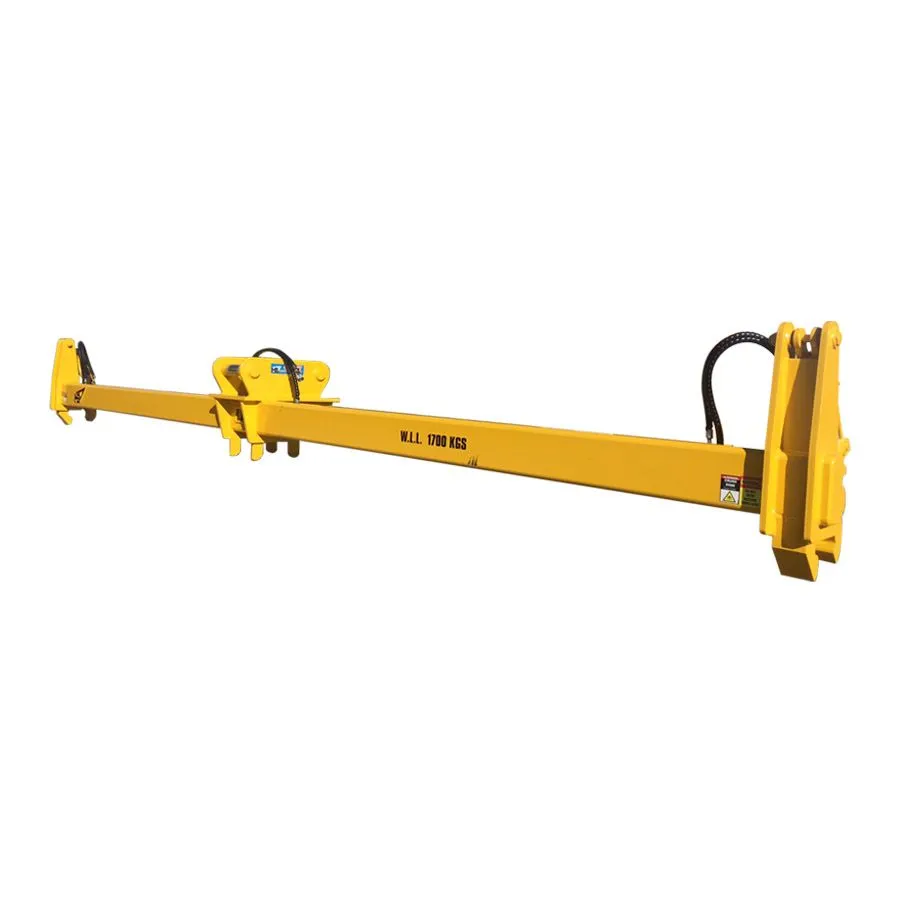

HARRYBILT ENGINEERING RAIL GRAB
The Rail Grab has been designed by Harrybilt Engineering to pick up and manoeuver lengths of rail up to 1700kg in weight.
The grab includes 2 hydraulically operated jaws to grip and hold the rail. The hydraulic cylinders controlling these jaws are fitted with counterbalance valves to keep the rail secure even in the event of hose failure.
