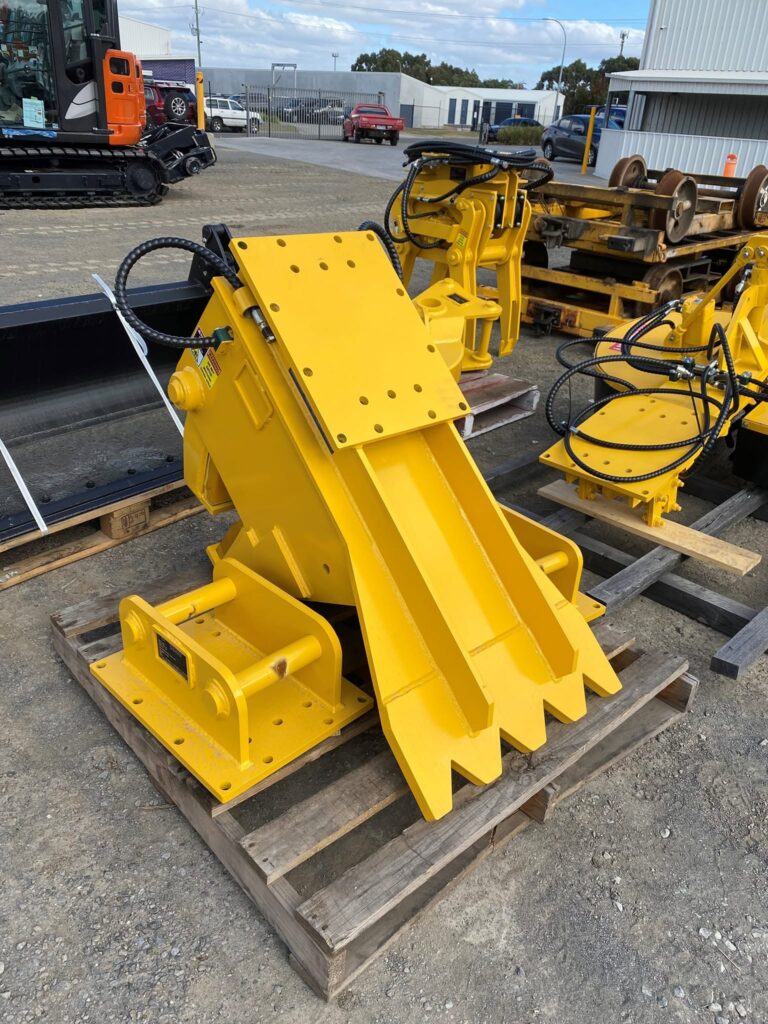

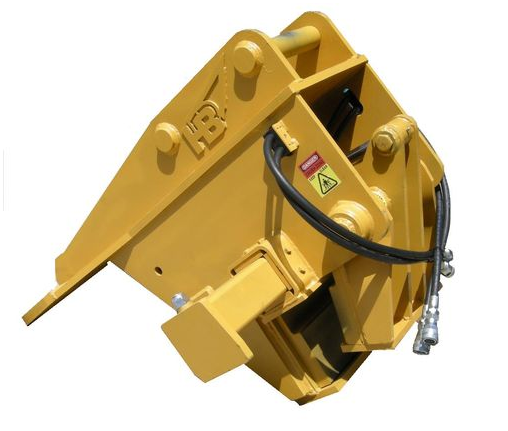

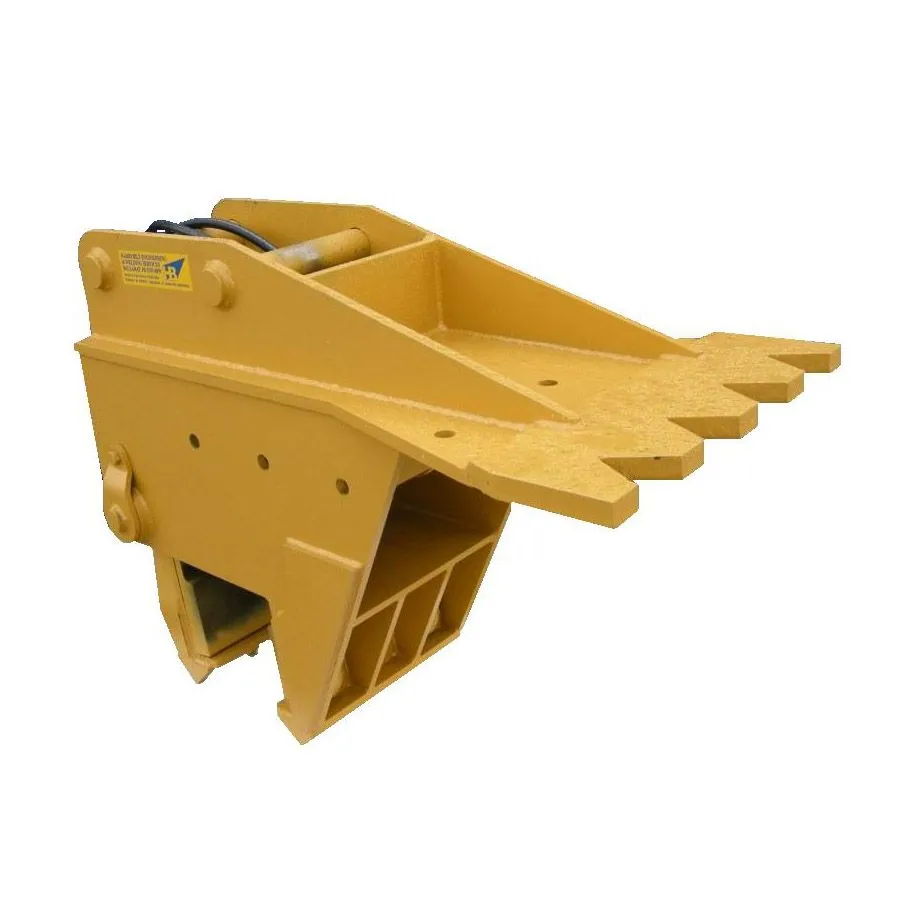

HARRYBILT ENGINEERING PLATYPUS CLIP PUSHER

Grab

/

Excavator

Product Overview

The addition of the clip pusher in this model allows for clips on the sleeper to be fixed to the inside of the rail.

A fast and efficient method saves manual handling, time and money.
Weight (Tare): 440kg
Height: 1.1 Metres
Width (Standard Blade): 0.63 Metres
Length (Standard Blade) 1.2 Metres
Working Load Limit: 400kg (1 x 400kg Concrete Sleeper)

Note: Not to exceed the WLL of the excavator / boom the Platypus is fitted to.

Key Features

Integrated Clip Pusher System

Enables clips to be securely installed on the inside of the rail, reducing manual handling and improving installation efficiency.

Optimised for 12T+ Excavators

Recommended for use with a minimum 12-ton excavator fitted with a tilt rotating head and over-centre lockout valves for maximum safety, control, and manoeuvrability.

Compact, Heavy-Duty Design

Features a 400 kg Working Load Limit and 440 kg tare weight, delivering reliable performance for concrete sleeper installation and rail maintenance.

Specifications

PLATYPUS CLIP PUSHER
Attachment Weight (KG) 480
Oil flow (LPM) N/A
Oil Pressure (PSI) 1000-2600 PSI
Excavator Class (Tons) 14t

Industry

Type

Machine

Interested in the Product?

Get the right attachment for the job — faster, tougher, and built for NZ conditions.
Let’s enquire about how Boss can deliver results for you.

Related Products

HARRYBILT ENGINEERING RAIL GRAB

The Rail Grab has been designed by Harrybilt Engineering to pick up and manoeuver lengths of rail up to 1700kg in weight.

The grab includes 2 hydraulically operated jaws to grip and hold the rail.  The hydraulic cylinders controlling these jaws are fitted with counterbalance valves to keep the rail secure even in the event of hose failure.
