LaValley Tonghand

Pipe & Pole Handler

/

Excavator

Product Overview

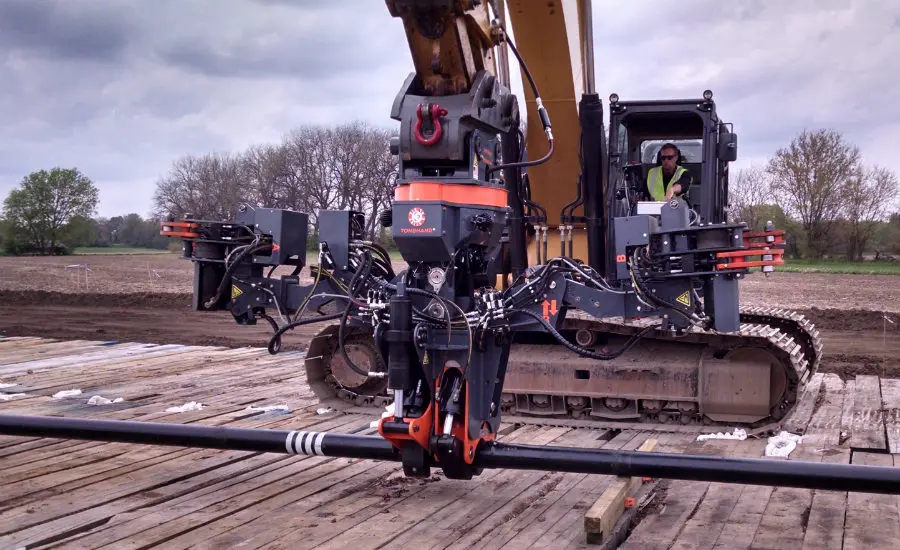

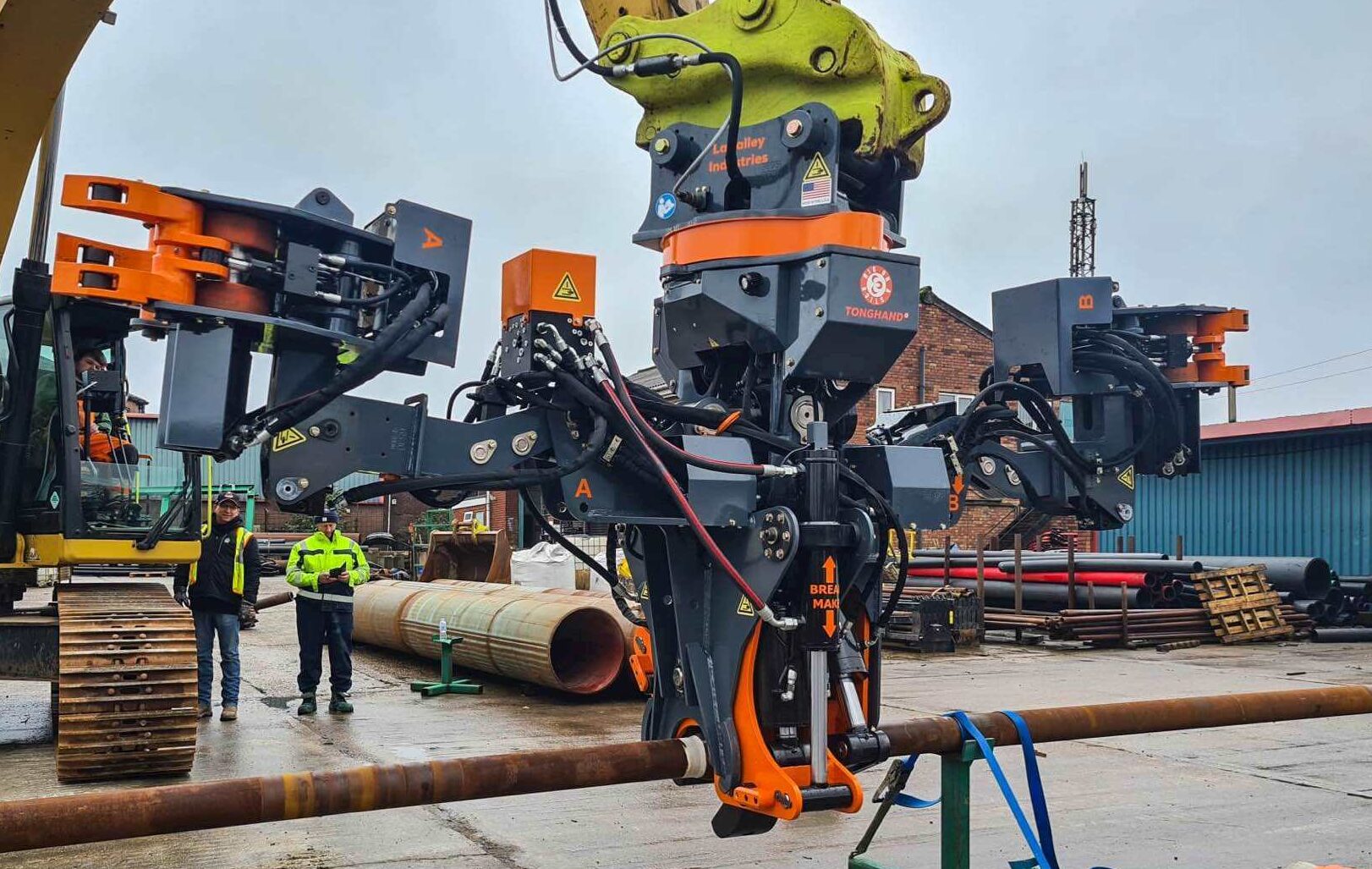

TONGHAND®, embraced by HDD contractors globally, is the pinnacle of safety and efficiency for exit-side operations. This powerful excavator attachment simplifies tasks from handling threaded pipes and drill rods to precision torquing of pipe joints, reamers, and subs, all from the safety of the excavator cab.

Key Features

The patented TongVise™ easily makes and breaks joints with guaranteed precision.

TONGHAND® eliminates the use of back-breaking wrenches and removes personnel from working in danger zones.

TONGHAND® mounts to any brand of excavator—the excavator’s auxiliary hydraulics safely and efficiently power the TONGHAND® system.

Specifications

Units TONGHAND TONGHAND S TONGHAND XS
Excavator Wt Class TON 30-36 METRIC TON 18-23 METRIC TON 14-18 METRIC TON
Supply Pressure PSI / BAR 5000 PSI / 345 BAR 5000 PSI / 345 BAR 3000 PSI / 207 BAR
Max Flow GPM / LPM 35 GPM / 132 LPM 30 GPM / 114 LPM 30 GPM / 114 LPM
Min Flow GPM / LPM 25 GPM / 76 LPM 20 GPM / 76 LPM 20 GPM / 76 LPM
Standard Recommended Flow GPM / LPM 30 GPM / 114 LPM 25 GPM / 91 LPM 25 GPM / 95 LPM
Main Beam Size – – – –
Capacity LB/KG 16,000 LB / 7,258 KG 5,000 LB / 2,268 KG 5,000 LBS / 2,268 KGS
Weight LB/KG 8350 LB / 3788 KG 5496 LB / 2493 KG 4672 LBS / 2119 KGS
Dimensions INCHES 100L x 46W x 97H (IN) / 254L x 117W x 246H (CM) 96W x 60D x 85H (IN) / 244W x 152D x 216H (CM) 90L x 39W x 73H (IN) / 229L x 99W x 185H (CM)
