LaValley Deckhand

Pipe & Pole Handler

/

Excavator

Product Overview

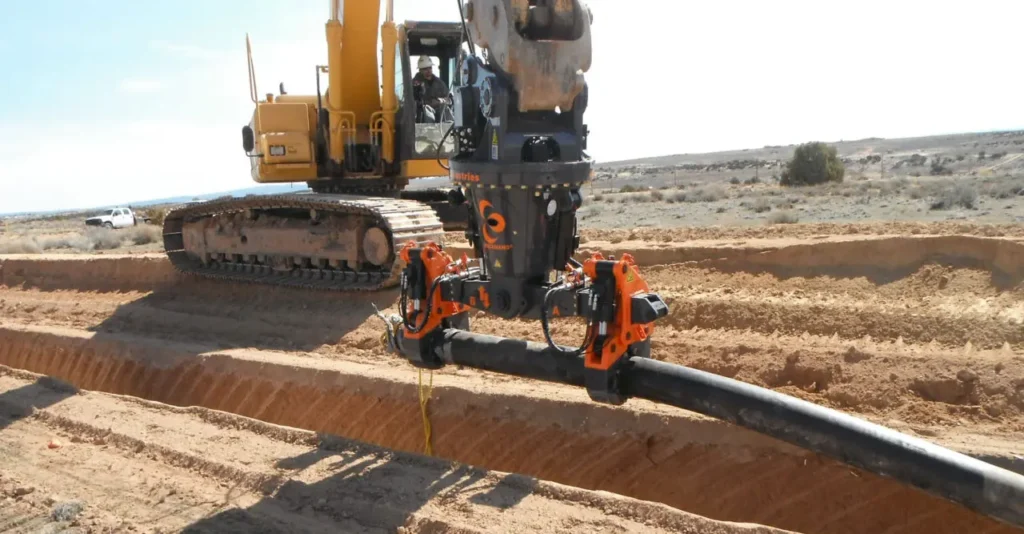

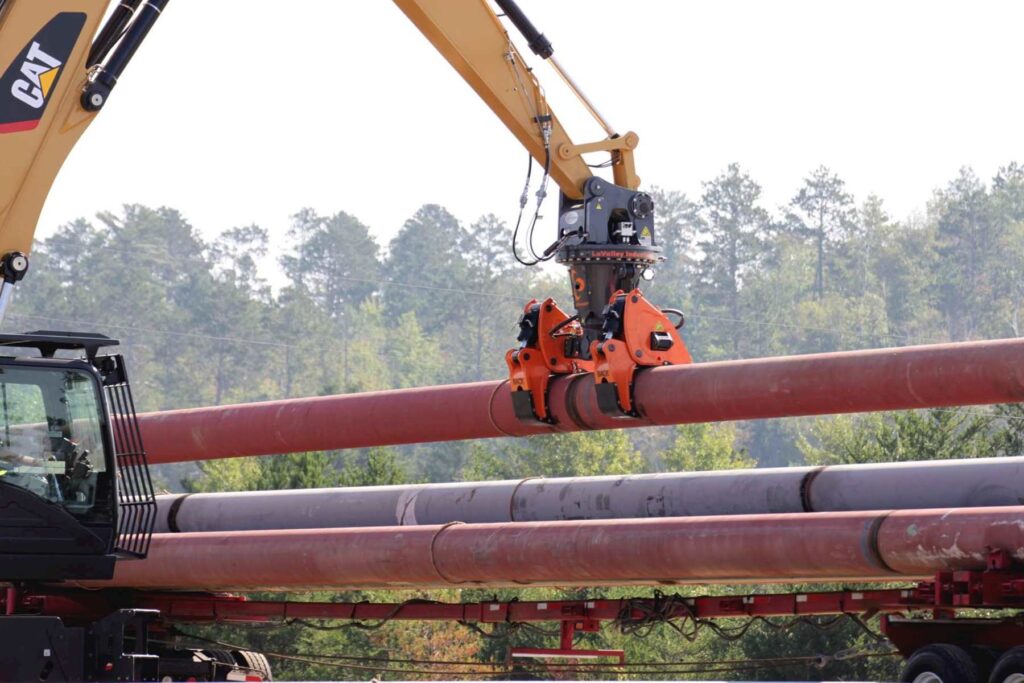

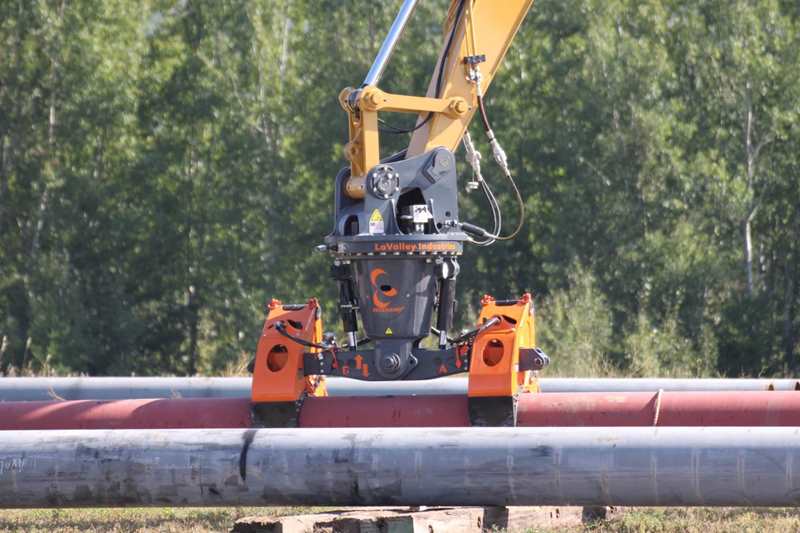

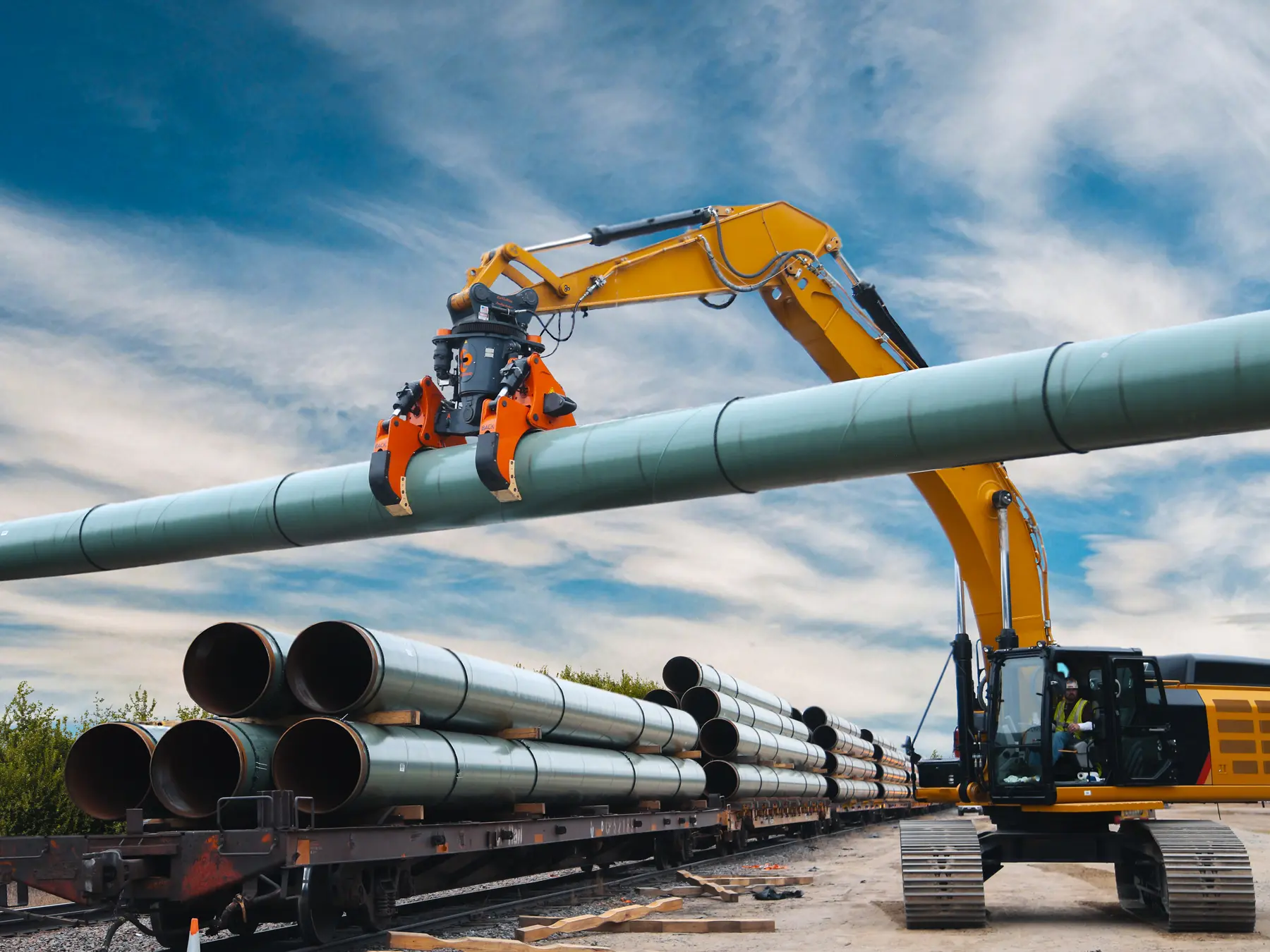

The DECKHAND® range by LaValley Industries offers specialised pipe handling solutions for excavators ranging from 18 tonnes to over 75 tonnes, ensuring a perfect fit for any scale of operation. From the nimble DECKHAND® S, ideal for lighter, more precise tasks, to the robust DECKHAND® XL, designed for the heaviest loads in challenging mining and pipeline environments, our lineup caters to a wide spectrum of industrial needs. Each model is equipped with state-of-the-art load-locking valves and offers features like 360° continuous rotation and advanced in-cab monitoring systems that enhance safety and control, regardless of the conditions.

Key Features

Superior Control and Precision

Offering 360° rotation and up to 14° beam tilt, DECKHAND® allows precise material handling and placement. Optional stick-mounted cameras provide enhanced visibility and accuracy, making it essential for navigating complex environments.

Advanced Safety Features

DECKHAND® prioritizes safety with features like load-locking valves that ensure secure grips on materials regardless of hydraulic pressure. In-cab displays enable safe monitoring and adjustments, significantly reducing on-site risks.

Unmatched Versatility

The DECKHAND® range supports excavators from 18 to over 75 tonnes, featuring modular designs and interchangeable arms for handling various materials. Its adaptability across different industries ensures that DECKHAND® meets the diverse needs of any project, enhancing operational flexibility.

Specifications

UNITS DECKHAND DECKHAND LT DECKHAND S DECKHAND DH5HP DECKHAND L DECKHAND XL
Excavator Wt Class TON 20-36 METRIC TON 18-23 METRIC TON 18-23 METRIC TON 20-36 METRIC TON 40-50 METRIC TON 60-75 METRIC TON
Supply Pressure PSI / BAR 3000 PSI / 207 BAR 3000 PSI / 207 BAR 3000 PSI / 207 BAR 5000 PSI / 345 BAR 3200 PSI / 221 BAR 3200 PSI/ 221 BAR
Max Flow GPM / LPM 30 GPM / 114 LPM 30 GPM / 114 LPM 30 GPM / 114 LPM 30 GPM / 114 LPM 40 GPM / 151 LPM 40 GPM / 151 LPM
Min Flow GPM / LPM 20 GPM / 76 LPM 20 GPM / 76 LPM 20 GPM / 76 LPM 20 GPM /76 LPM 30 GPM / 114 LPM 30 GPM / 114 LPM
Recommended Flow GPM / LPM 25 GPM / 95 LPM 25 GPM / 95 LPM 25 GPM / 95 LPM 25 GPM / 95 LPM 35 GPM / 132 LPM 35 GPM /132 LPM
Main Beam Size – 6×6 6×6 6×6 6×6 8×8 10×10
Capacity LB/KG 30,000 LB / 13,608 KG 20,000 LB / 9072 KG 20,000 LB / 9072 KG 30,000 LB / 13,608 KG 40,000 LB / 18,144 KG 50,000 LB / 22,680 KG
Weight LB/KG 2900 LB / 1315 KG 2200 LB / 998 KG 2200 LB / 998 KG 3246 LB / 1472 KG 3650 LB / 1656 KG 4177 LB / 1895 KG
Dimensions INCHES 83L x 37W x 63H (IN) / 211L x 94W x 160H (CM) 83L x 35W x 49H (IN) / 211L x 89W x 125H (CM)
83L x 35W x 49H (IN) / 211L x 89W x 125H (CM)
 112L x 40W x 68H (IN) / 285L x 102W x 173H 117L x 40W x 70H (IN) / 297L x 102W x 178H
