Key Features

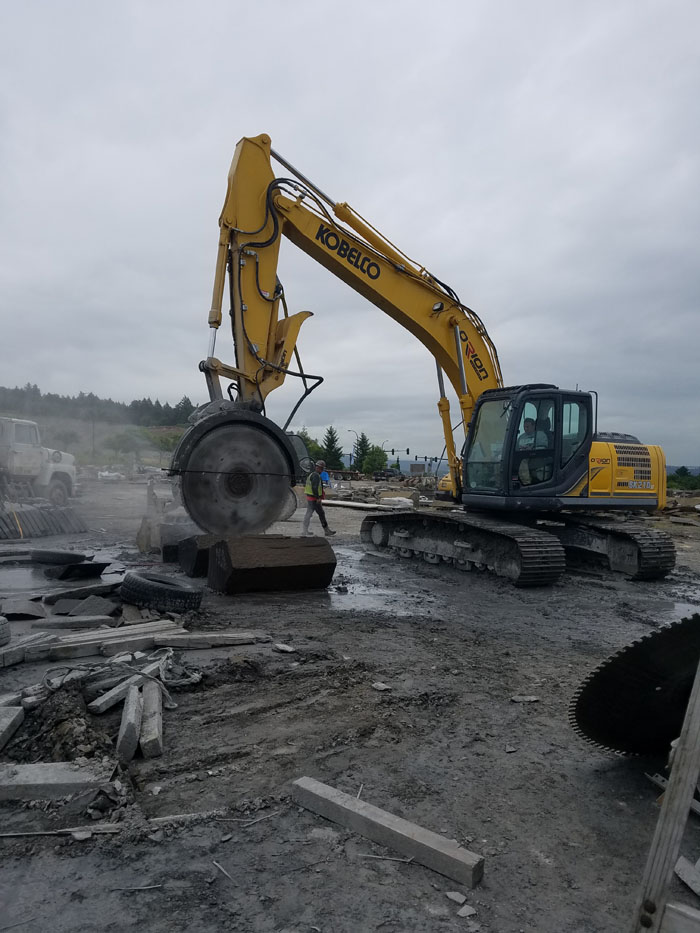

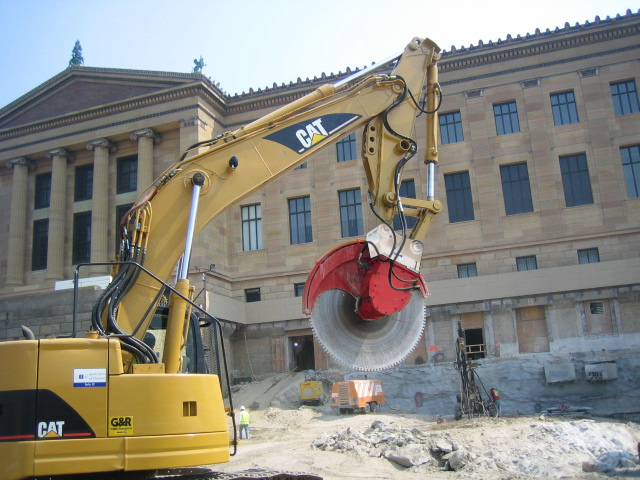

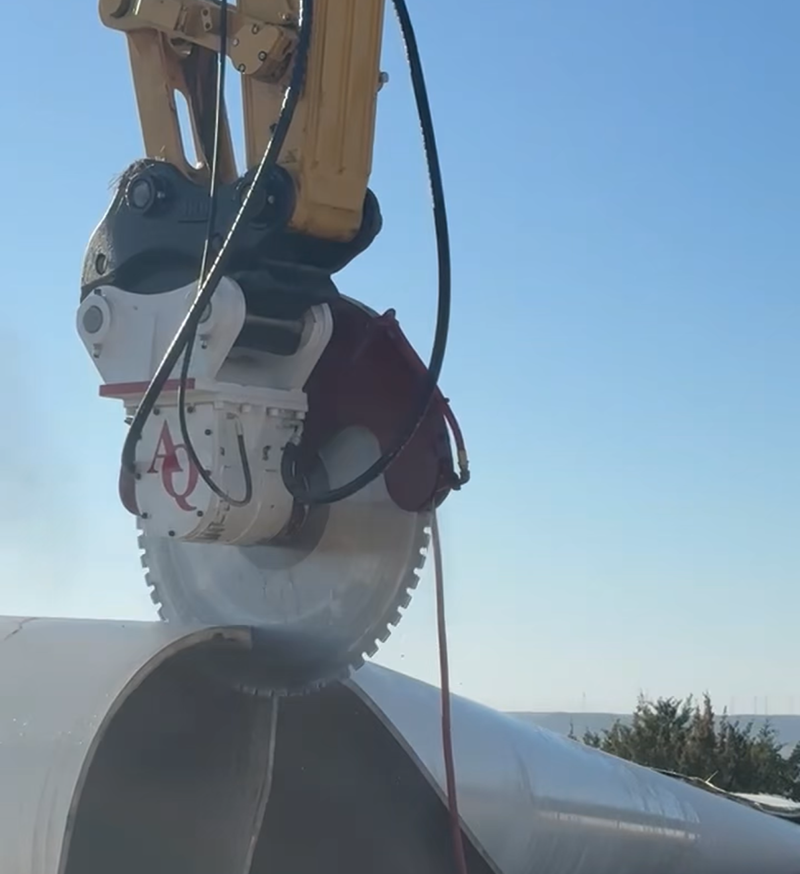

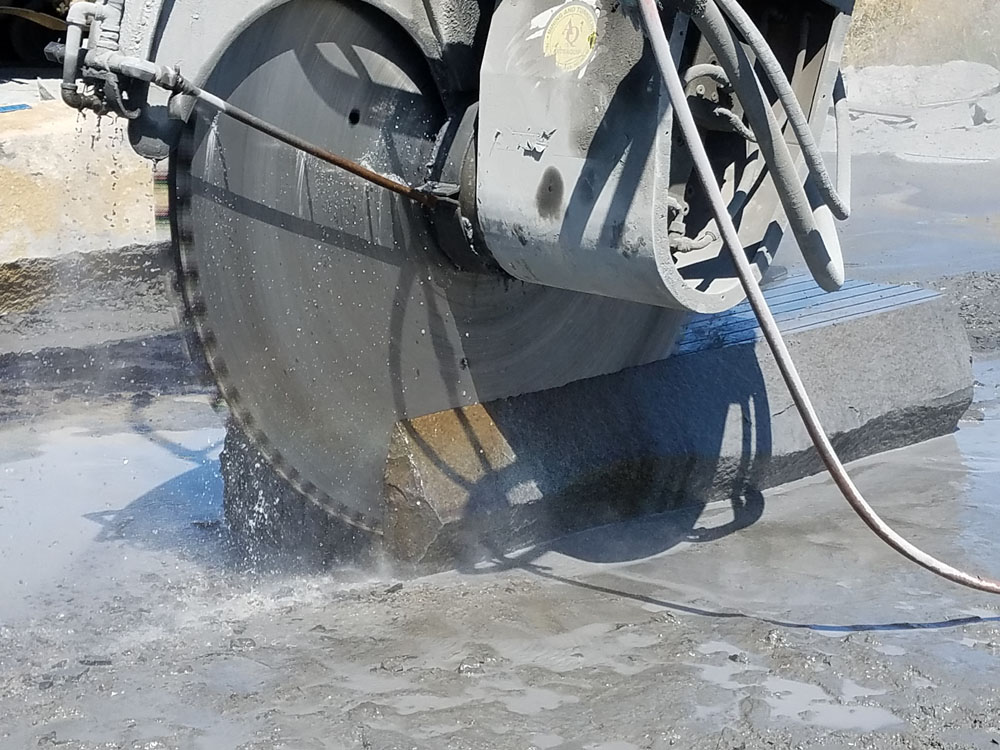

- Cuts the Hardest Rock & Reinforced Concrete – Diamond saws (AQD Series) are engineered to cut granite, basalt, and other extremely hard rock, plus reinforced concrete — materials that carbide wheels or drum cutters cannot handle.
- AQD saws include: Adjustable shield, Rotating stand, Reversible blade rotation, Automatic braking system
- Safety Features: Shield, Rotating Stand, Auto‑Brake
- Large Cutting Wheel Diameter (40–62 in / 1000–1800 mm). This allows for high‑productivity cutting in mass rock excavation and dimensional stone work.
Specifications
| UNIT | AQD60 | AQD150 | |
| Cutting Depth | in (mm) | 16- 28(400-700) | 16- 50(400-1.250) |
| Cutting Wheel Diameter | in (mm) | 40- 62(1,600-1,800) | 40-98 (1.000- 2.500) |
| Rated Power | HP (kW) | 60(45) | 150 (110) |
| Carrier Weight | tons | 5-20 | 15-40 |
| Recommended Oil Flow | GPM (L/min) | 16 – 32(60-121) | 37-92 (140-348) |
| Torque Output at 375 bar | ft Ibs (Nm) | – | – |
| Cutting Force at 375 bar | Ibs (N) | – | – |
