Sterling Technology Pile Driver

Pile Drivers

/

Excavator

Product Overview

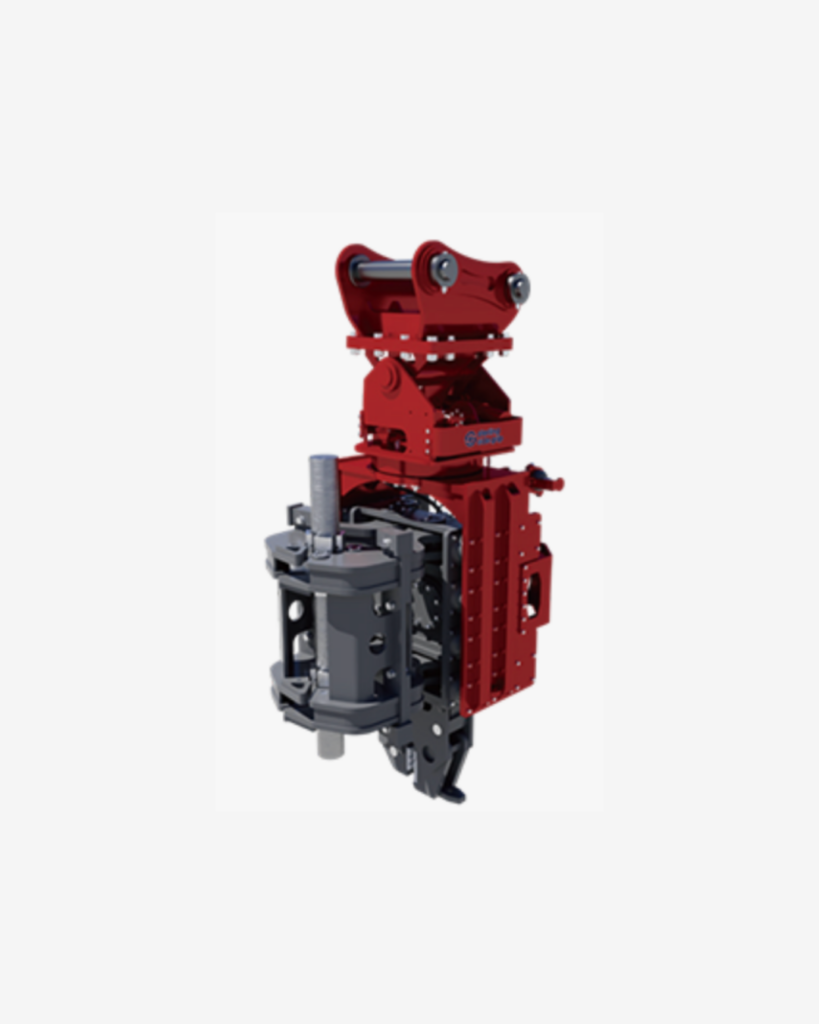

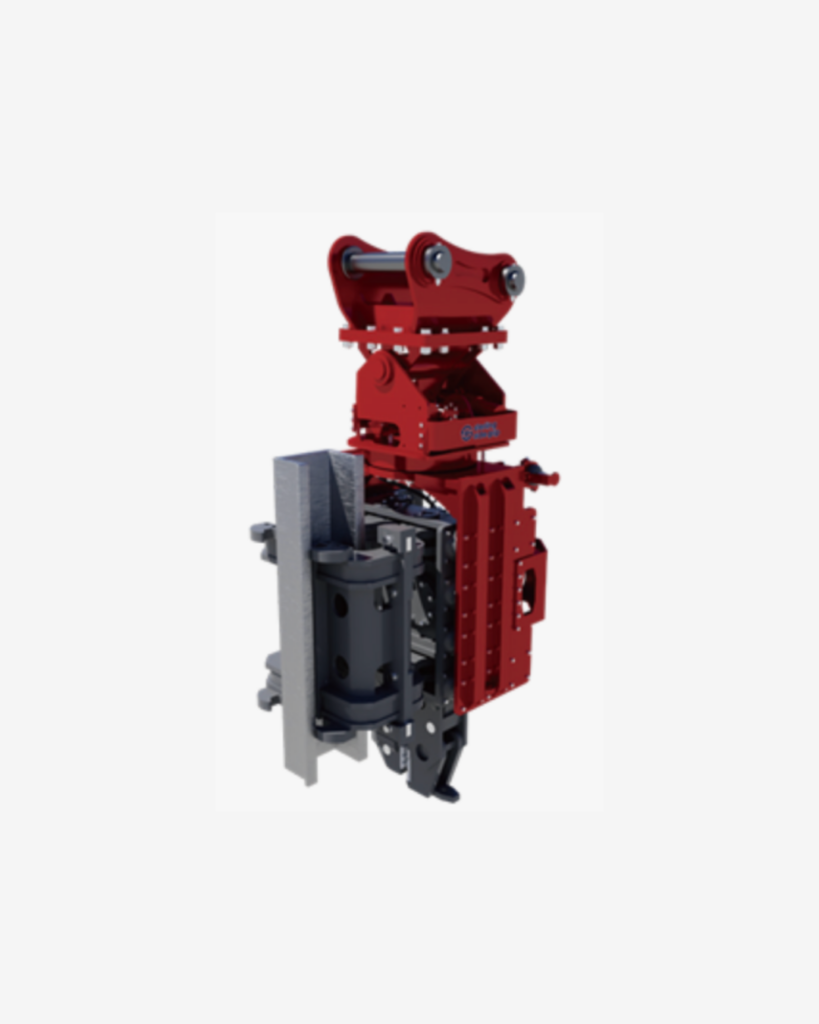

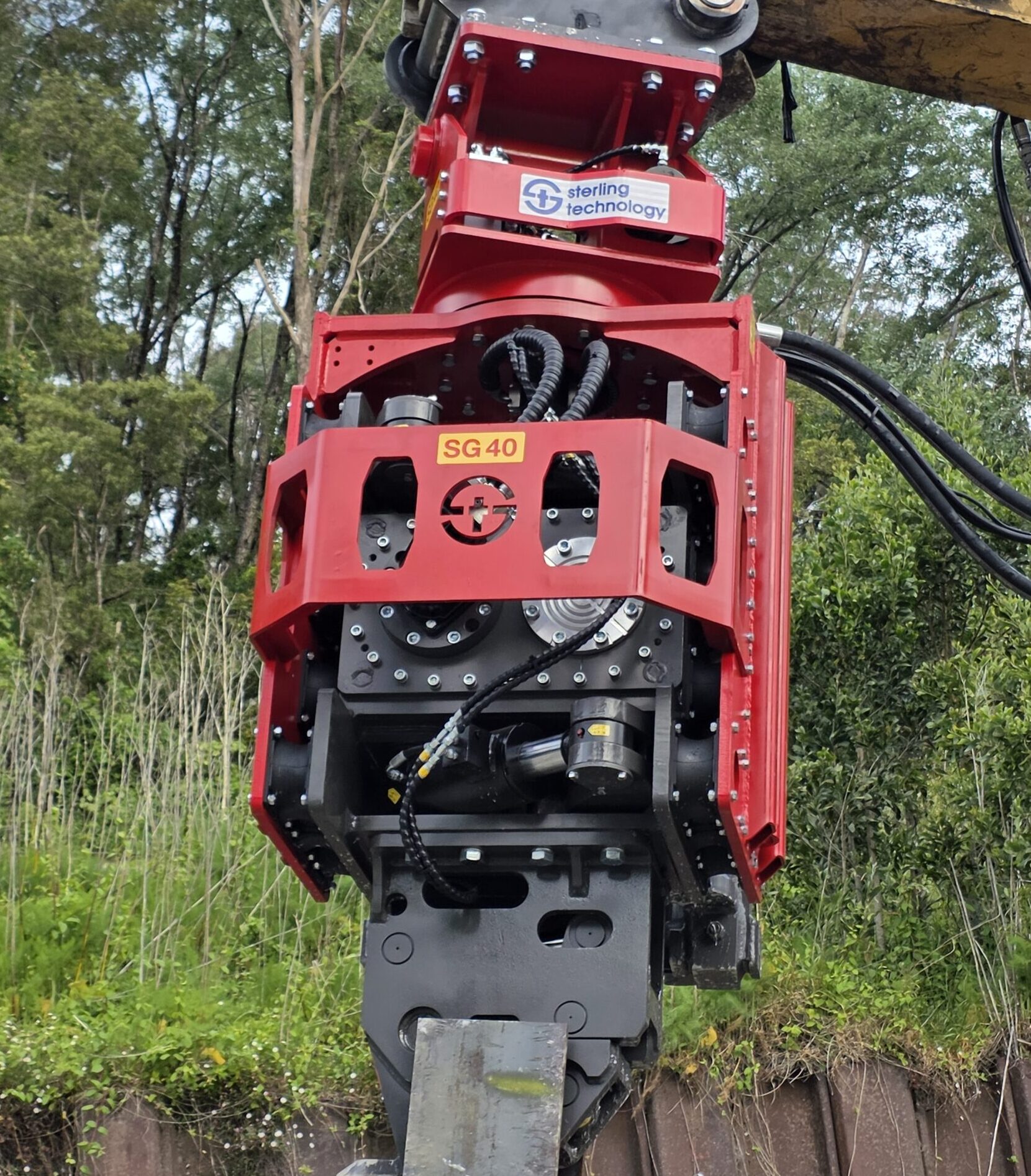

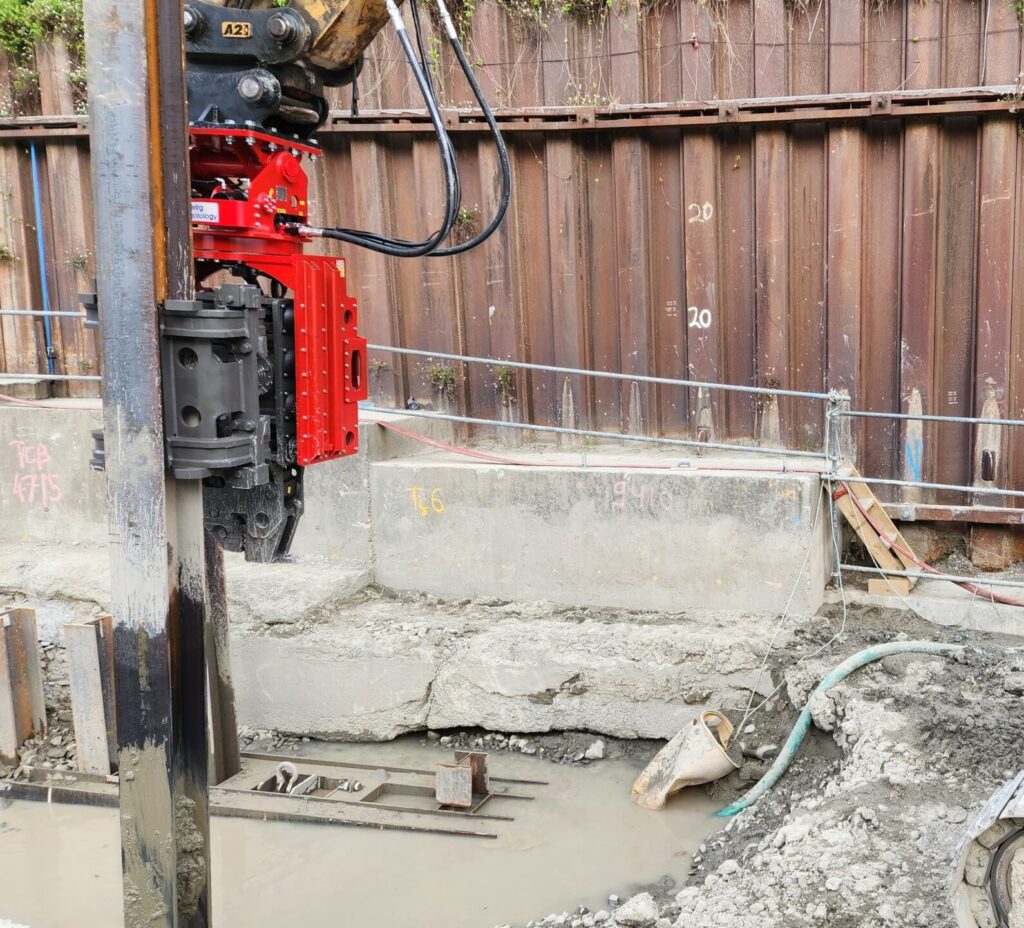

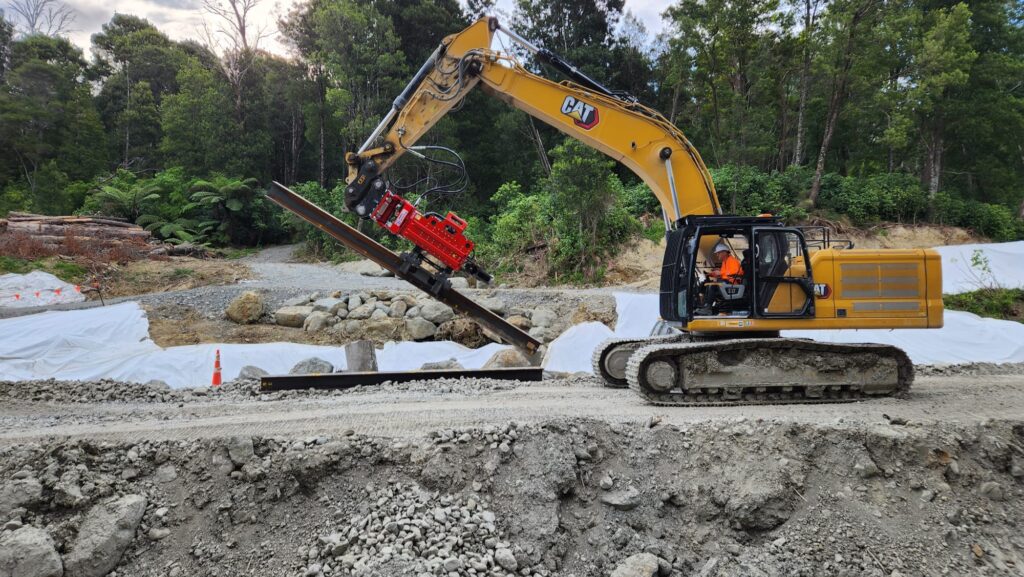

Sterling Technology pile drivers are engineered for versatility and performance.

Supporting a wide range of pile types, including sheet piles, H‑beams, I‑H beams, and round piles, excel in low‑headroom and confined‑space job sites. This can also be attributed to the precise 360‑degree swivel side‑clamping that ensures accurate gripping.

With larger, double eccentric weights, the machinery delivers faster and more powerful penetration and extraction than typical side‑grip drivers. The design emphasises durability, low maintenance, and long service life, supported by balanced counterweights and a rigid rubber cushion.

Key Features

  • Available for a wide range of piles – Sheet piles, H beams, I-H beams, and round-piles
  •  Versatile piling at headroom job site
  •  Versatile piling at a confined space job site
  • Precise and accurate side clamping – 360-degree Swivel rotatable grip pads enable precisely and accurately clamping
  •  Quicker and more powerful – Faster penetration and extraction than other side grip pile drivers thanks to bigger and double eccentric weight
  •  Low maintenance cost & easy maintenance – compact structure of components
  • Rigid and durable – Balanced counterweights and rigid rubber cushion
  • Interchangeable side clamp system available

Interchangable Clamp Options

The Sterling Technology Side Grip Pile Driver can handle all types of piles with its multiple clamps, offering quick transfer capability between various applications.

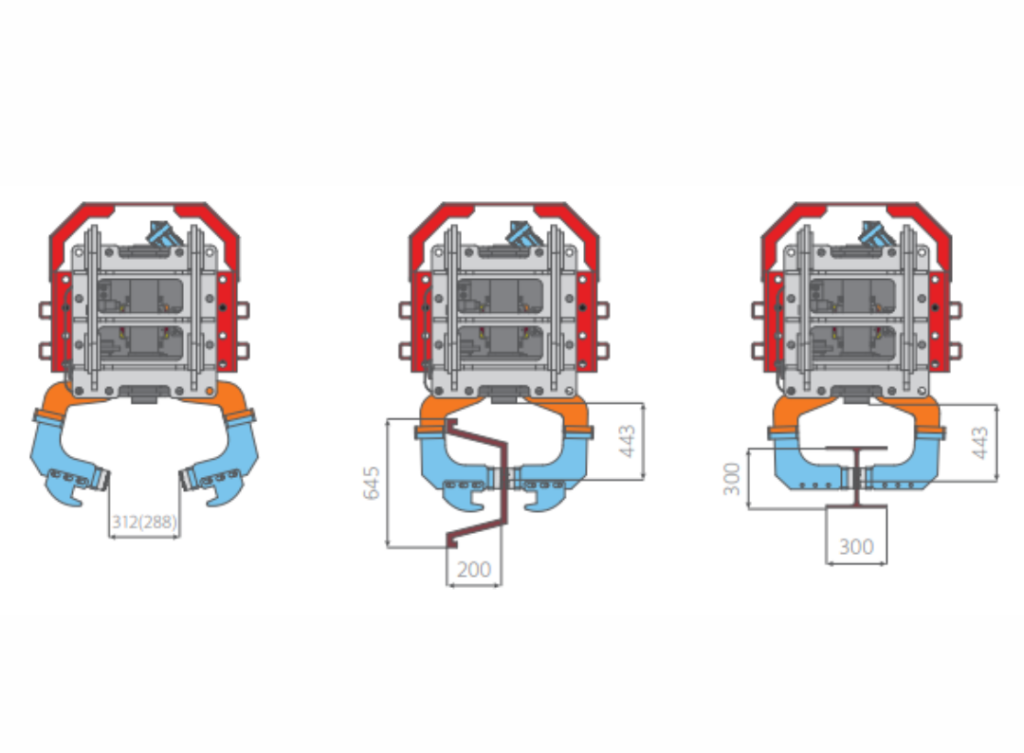

STANDARD CLAMP

For sheet piles and H-beams.

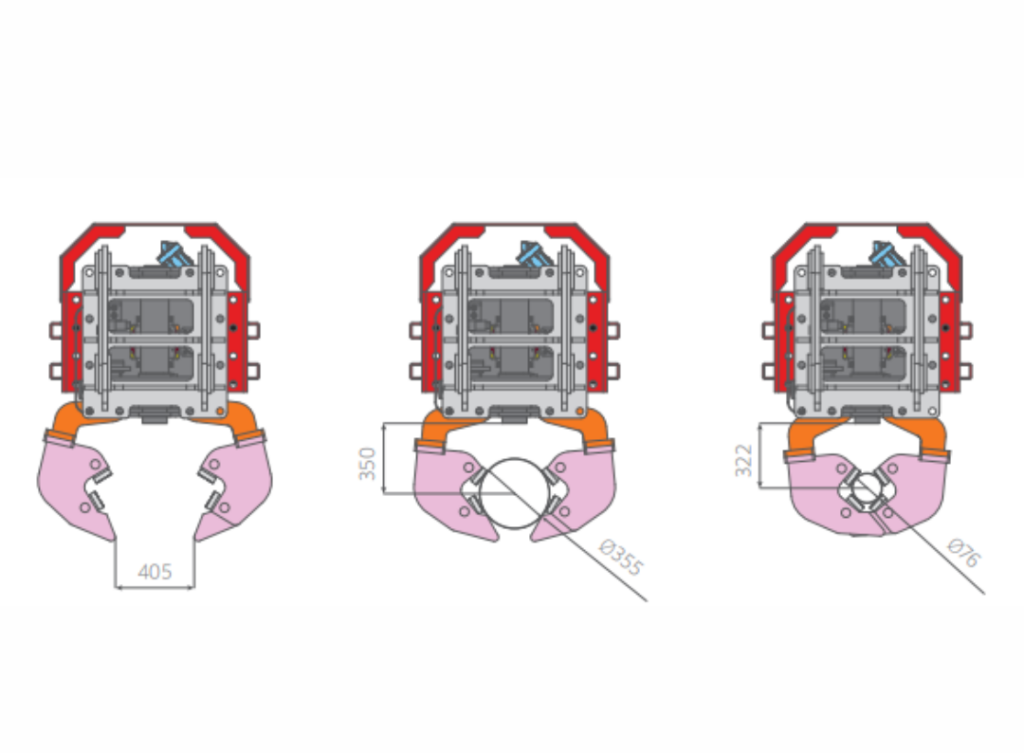

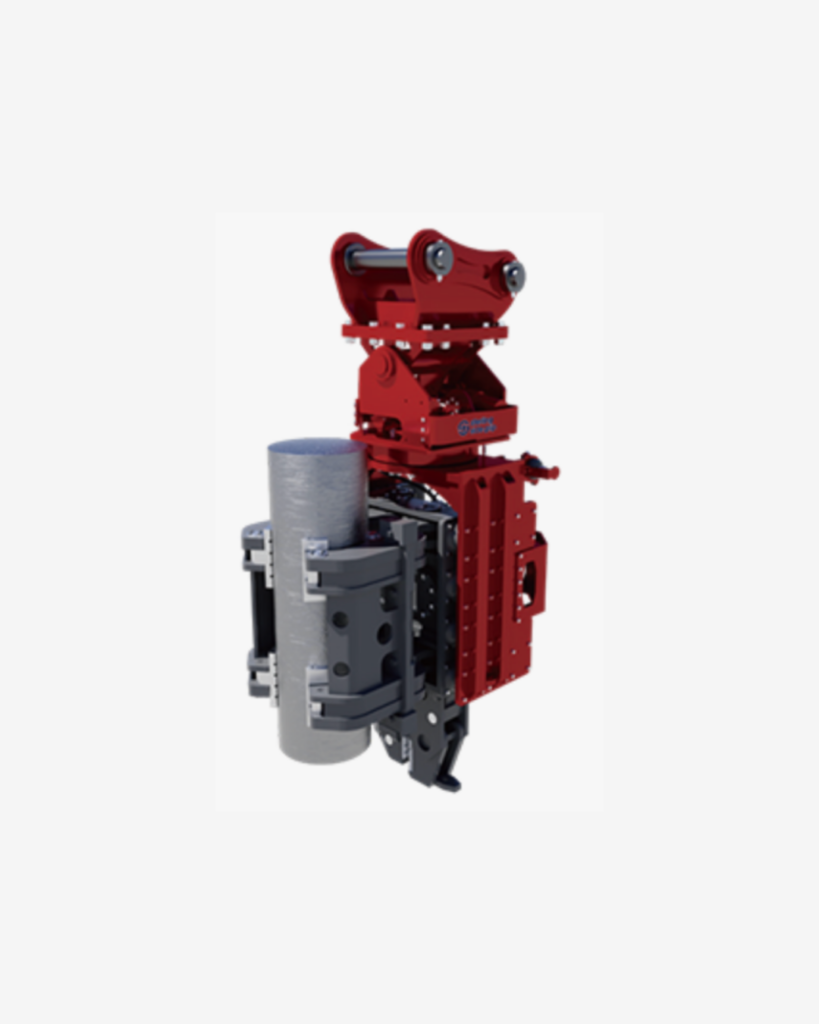

ROUND PILE CLAMP (S)

For round shape piles sized from 150mm to 350mm

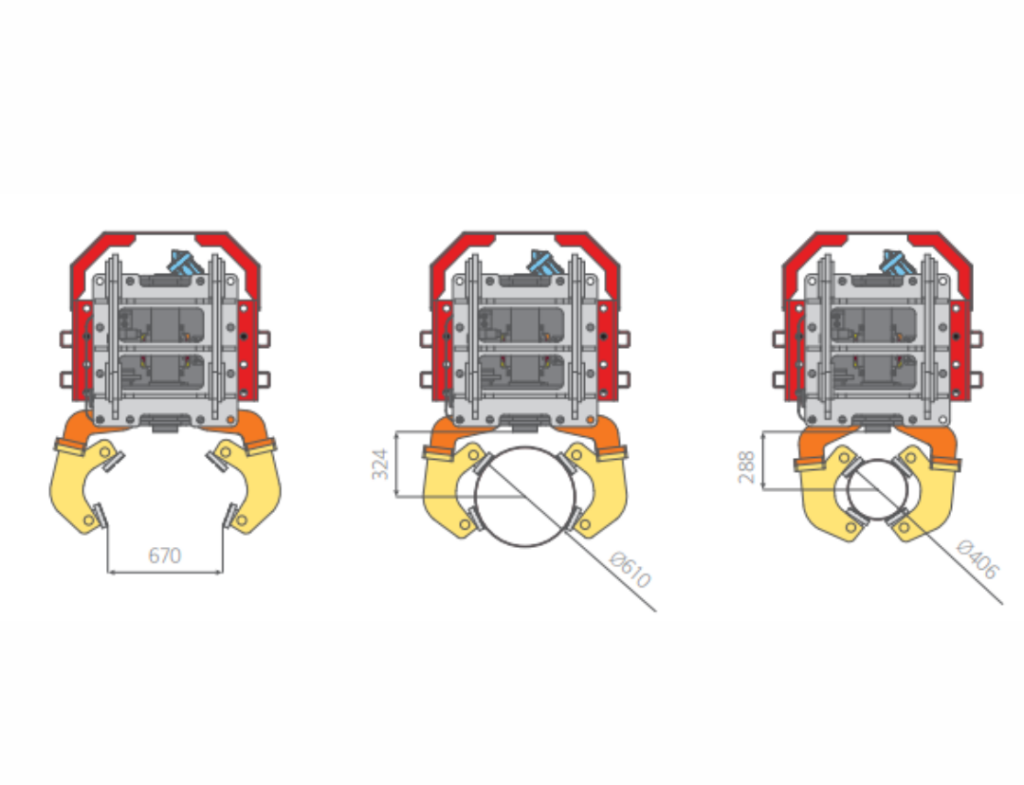

ROUND PILE CLAMP (L)

For round shape piles sized from 300mm to 500mm

Specifications

Model Unit UNITS SG15 SG25 SG30 SG40
Suitable Excavator ton 14-22 20 ~ 26 28 ~ 36 36 ~ 50
Weight (Excl.
Mounting Adapter)		 Kg / Lbs 1,974 / 4,299 2,820 / 6,217 3,300 / 7,276
3,800 / 8,378
Setting Pressure bar / PSI 300 / 4,350 301 / 4,350 302 / 4,350 303 / 4,350
Oil Flow lpm / gpm 90 ~ 108 / 24 ~ 29 150 ~ 170 / 40 ~ 45 180 ~ 220 / 48 ~ 58
240 ~ 260 / 63 ~ 69
Centrifugal force kN / Tons 313 / 34 530 / 58 580 / 64 940 / 103
Frequency RPM 2,800 ~ 3,370 3,300 ~ 3,600 2,800 ~ 3,600
3,000 ~ 3,250
Rotation deg 360˚ 360˚ 360˚ 360˚
Dimension
(A x B x C)		 mm inch 1,247 x 1,009 x
2,486 49.09 x
39.72 x 97.87		 1,510 x 1,039 x
2,765 59.5 x
40.9 x 108.9		 1,534 x 1,039 x 2,886 60.4 x 40.9 x 113.6
1,750 x 1,039 x
3,070 68.9 x
40.9 x 120.9
Tilting degree deg ±30 ±30 ±30 ±30
Bottom Jaw open mm / inch 65 / 2.6 65 / 2.6 65 / 2.6 65 / 2.6
Side clamp open mm / inch 288 / 12.33 289 / 12.33 290 / 12.33 312 / 12.28
Min Pile Grip ø mm / inch 76 / 3 77 / 3 78 / 3 79 / 3
Max Pile Grip ø mm / inch 610 / 24 611 / 24 612 / 24 613 / 24
