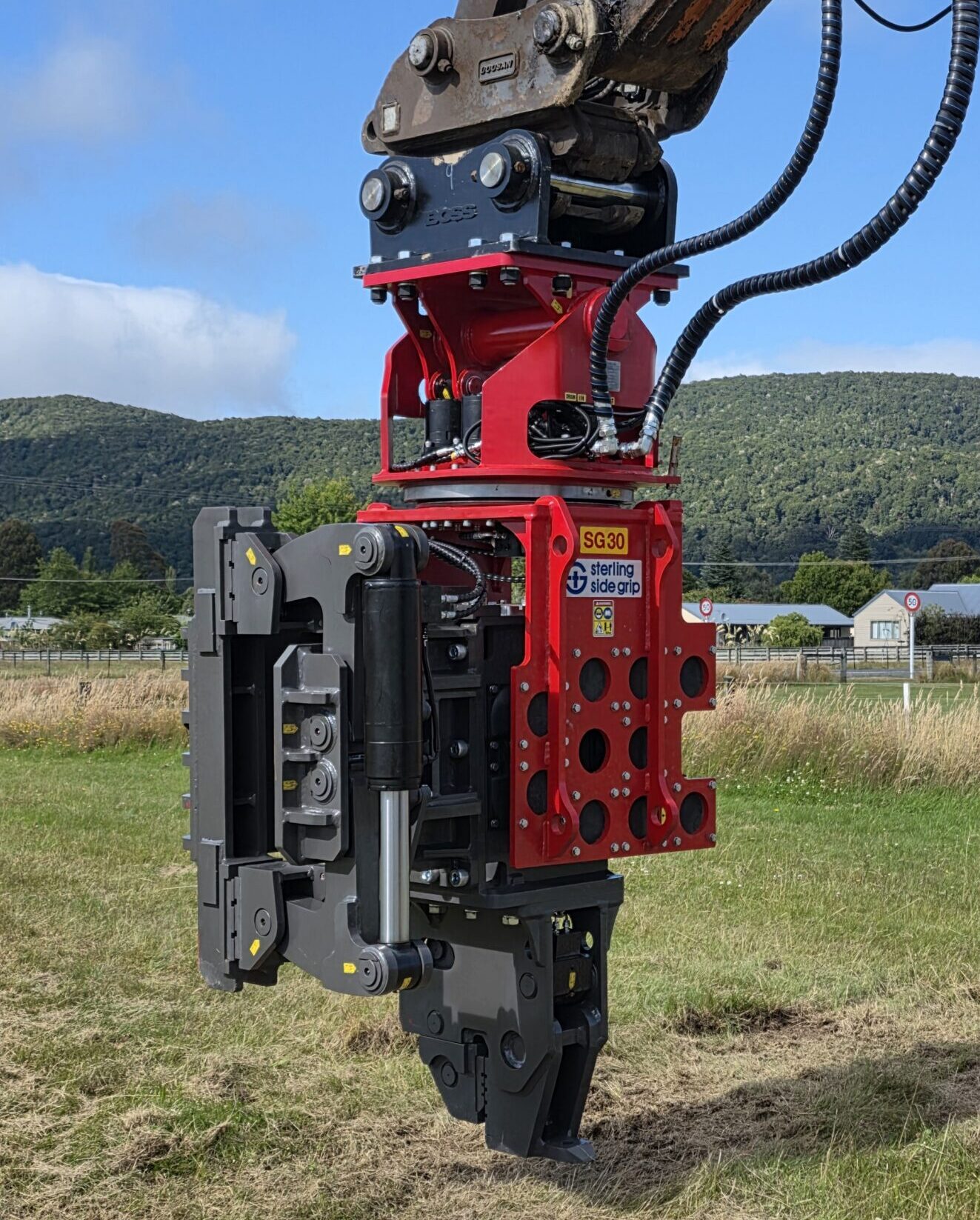

Sterling Technology Pile Driver – SG-W

Pile Drivers

/

Excavator

Product Overview

Sterling Technology pile drivers are engineered for versatility and performance.

The Sterling ‘W’-type side clamping system features a robust ‘W’-shaped clamp structure that delivers strong gripping force and ensures precise, accurate side clamping.

The Sterling ‘W’-type side clamping system features a robust ‘W’-shaped clamp structure that delivers strong gripping force and ensures precise, accurate side clamping

Key Features

Available for a wide ranges of piles

Sheet piles, H beams, and I-H beams

Quicker and more powerful

 Faster penetration and extraction than other side grip pile drivers thanks to bigger and double eccentric weight



Versatile piling at headroom job site and at a confined space job site

Precise and accurate side clamping

 Balanced four pads allows firmly, precisely and accurately clamping



Low maintenance cost & easy maintenance

Concise structure of components

Rigid and durability

Double bearings, balanced counter weighs and rigid rubber cushion

Specifications

SG25W SG30W
Model Unit 17 ~ 26 22 ~ 36
Suitable Excavator 2,620 / 5,776 2,800 / 6,173
Weight
(Excl. Mounting Adapter)		 300 / 4,350 300 / 4,350
Setting Pressure 150 ~ 170 / 40 ~ 45 180 ~ 220 / 48 ~ 58
Oil Flow 530 / 58 580 / 64
Centrifugal force 3,300 ~ 3,600 2800 ~ 3600
Frequency 360˚ 360˚
Rotation 1,165 x 1,210 x
2,600 / 45.8 x
47.6 x 102.3		 1,165 x 1,210 x
2,600 / 45.8 x
47.6 x 102.4
Dimension (A x B x C) ±30 ±30
Tilting degree 65 / 2.6 65 / 2.6
Bottom Jaw open 255 / 10 255 / 10
