LEOTECH Dust Canon

Dust Supression

/

Stand alone machine

Product Overview

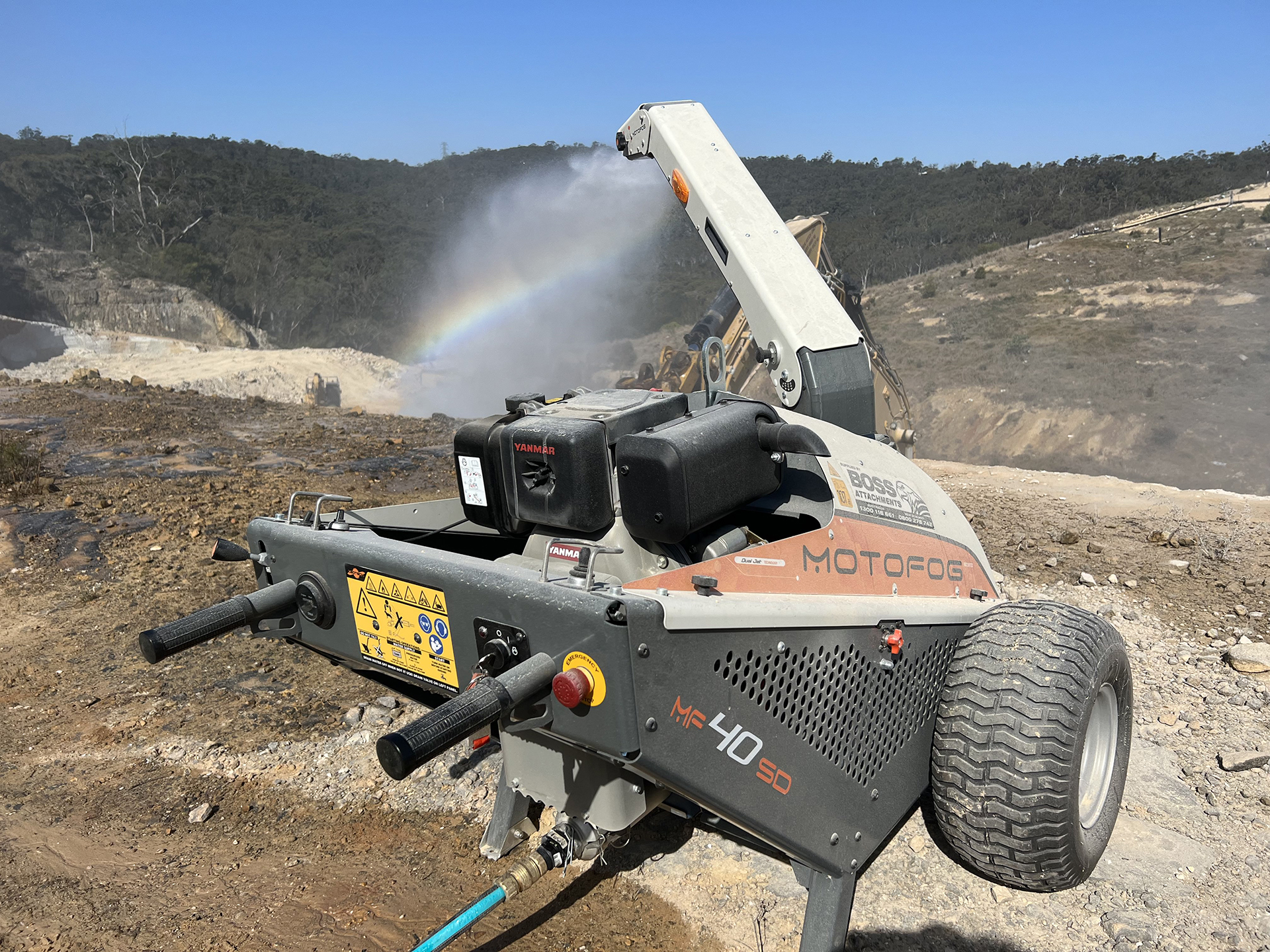

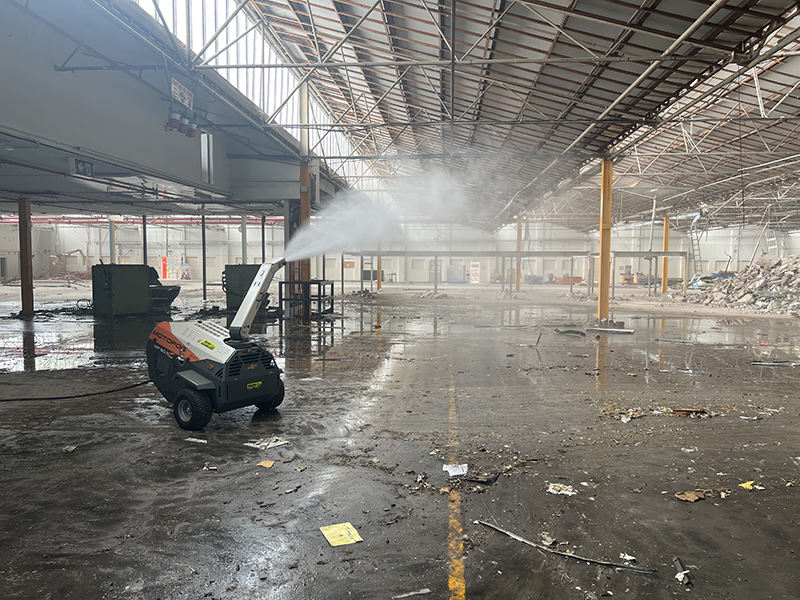

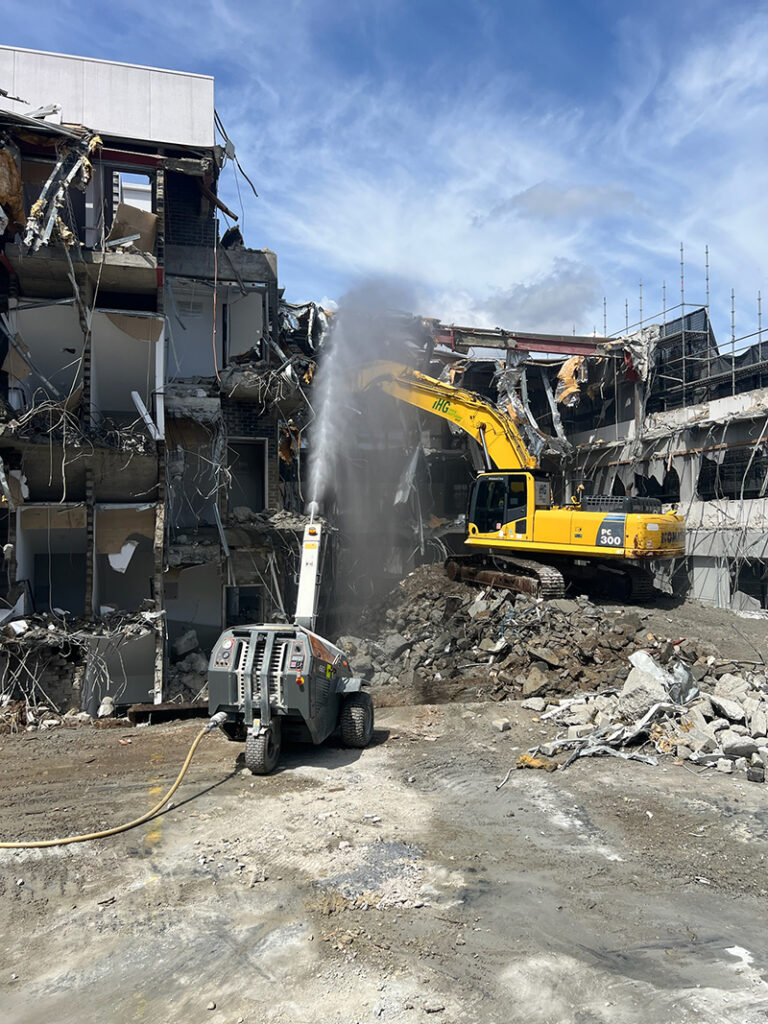

A nebulised jet dust suppression machine, provided with an internal combustion engine driving a high pressure pump. High pressure water is delivered to a spraying head with up/down and left/right electrically operated movements. The water jet is released at a proper height for safety reasons and to not disturb the operators on site.

MOTOFOG just needs a water supply to be ready to work. The operating costs are greatly reduced, because there is no need for additional power generators. The transport costs are as well reduced, thanks to its lightweight and compactness.

MOTOFOG with DUAL JET is a highly flexible solution which suits operator’s needs perfectly. The provided nozzles, through a simple operation, allow the selection of different spray patterns which can deliver either the long range or a wide coverage, according to the specific needs.

Key Features

Easy Handling & Manoeuvrability

With user-friendly design and easy maneuverability, our Leotech units make dust suppression effortless and convenient.

Compliance Assurance

Ensure compliance with workplace regulations by investing in our Leotech units, designed to meet and exceed safety standards.

Cost-Effective Solution

Our Leotech units offer a cost-effective solution by reducing the need for manual labor and minimizing water usage, saving you time and money

Specifications

UNITS MF10 MFX20 MF20 MF40 MF60
Engine Power CV/kW D – Diesel – – 7/5.0 10/7.4 25.7/18.9-
CV/kW B – Petrol 5.0/3.7 9/6.6 9/6.6 13/9.5 –
kW/Volt E – Electric 2.0/220-110 – 4.0/400 5.5/400 –
Range till M 10-15 20-25 20-25 30-35 50-55
Horizontal angle degree – 270 270 270 90
Vertical Angle degree 30 30 55 55 67.5
Nozzles Number [DUALJET/” 2 2 2 2 2
Water output pressure BAR 25-60 25-61 25-62 25-63 25-64
Water Quality – – – – –
Water Consumption 1/1′ max 6 – 13.0 12 – 24.0 12 – 24.0 20 – 42.0 50 – 100.0
Operating Height m 1.41 – 1.95 1.95 2.33
Uptime h 4-6 4-6 4-6 4-6 8
Weight kg 63-71 95 194-162-187 215-187-197 435
Dimensions m 1.04×0.88×0.75 0.79×0.55×0.72 1.45×1.20×1.22 1.45×1.20×1.22 1.45×1.20×1.22 1.45×1.20×1.22 1.45×1.30×1.56
UNITS RFA10 RFA20 RFA40 RFW60 RFW80
Engine Power kW/Volt 2.0/230-110 4.0/400 5.5/400 5.5+5.5/400 15+15/400
Range till m 10-15 120-25 30-35 35-55 55-80
Slewing Corner 360 360 360 270 320
Vertical Angle 0+23 0+23 0+23 -15+60 -15+70
Nozzles Number 1 1 1 2 3
Water pressure BAR 25-60 25-60 25-60 25-60 25-60
Water Quality
Water Consumption 1/1 max 2 – 13 24 42 42 – 84 100 – 200
Operating Height M 2.8 3 3 2.40 Max 3.20 Max
Weight KG 110 150 170 325 (mobile) 294 (fixed) 580
Dimensions M 0.80×0.85×1.40 0.80×0.85×1.64 0.80×0.85×1.64 1.41×1.26×1.86 (mobile) 1.20×1.68×1.65
1.19×1.00×1.83 (fixed)
