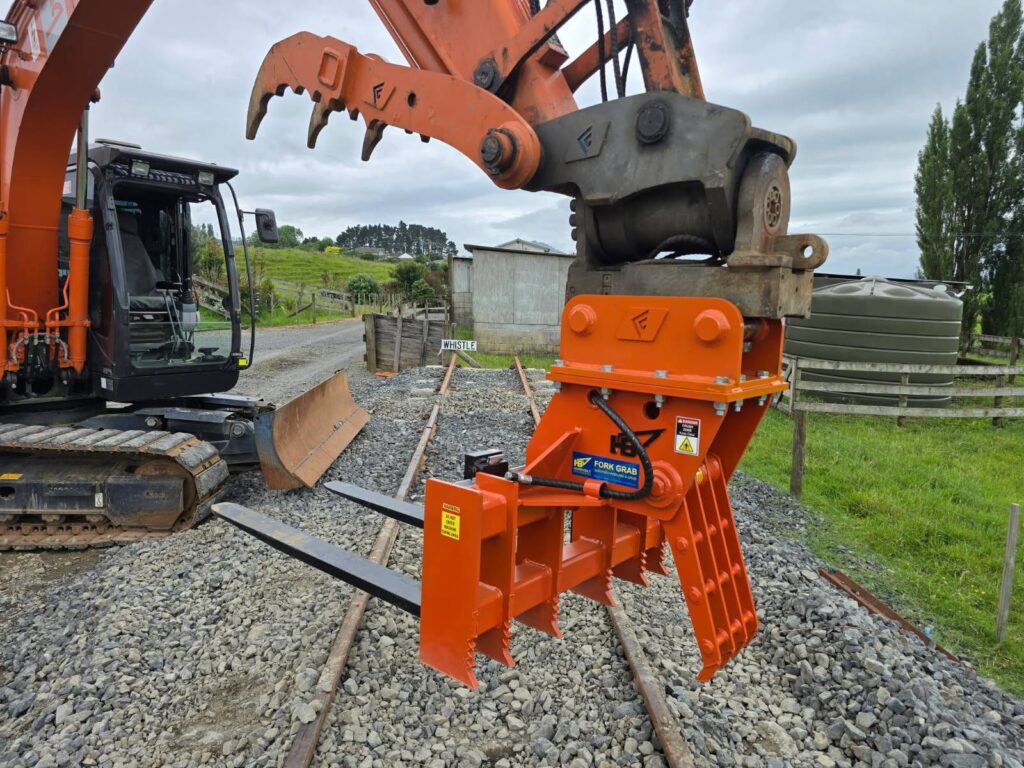

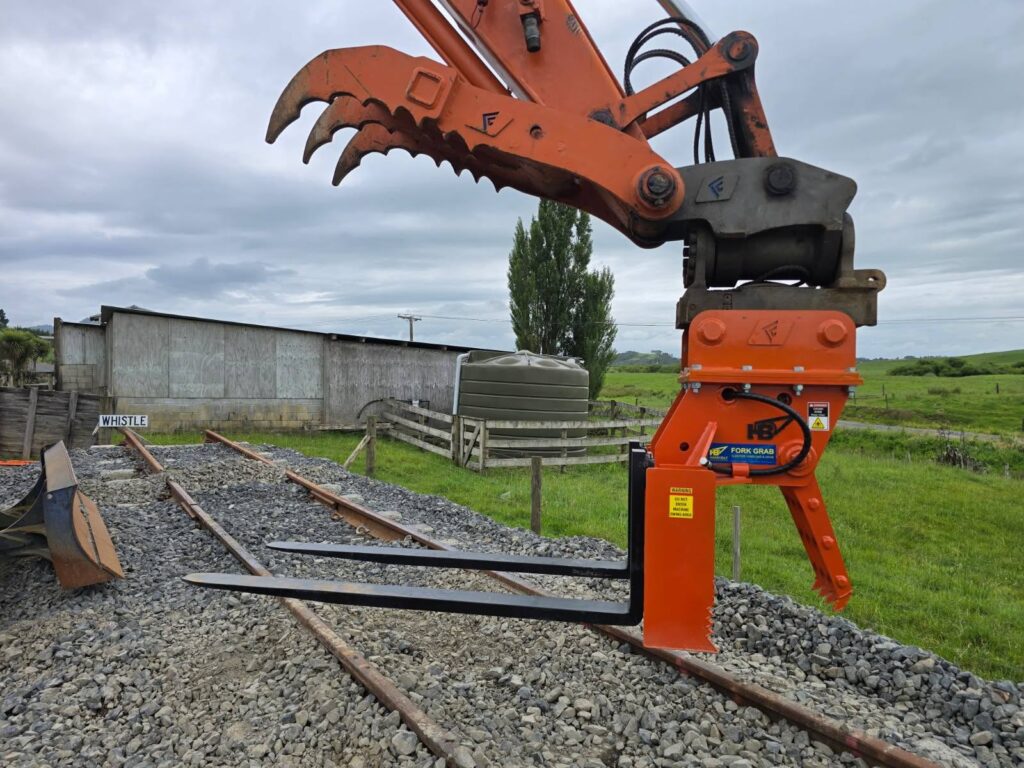

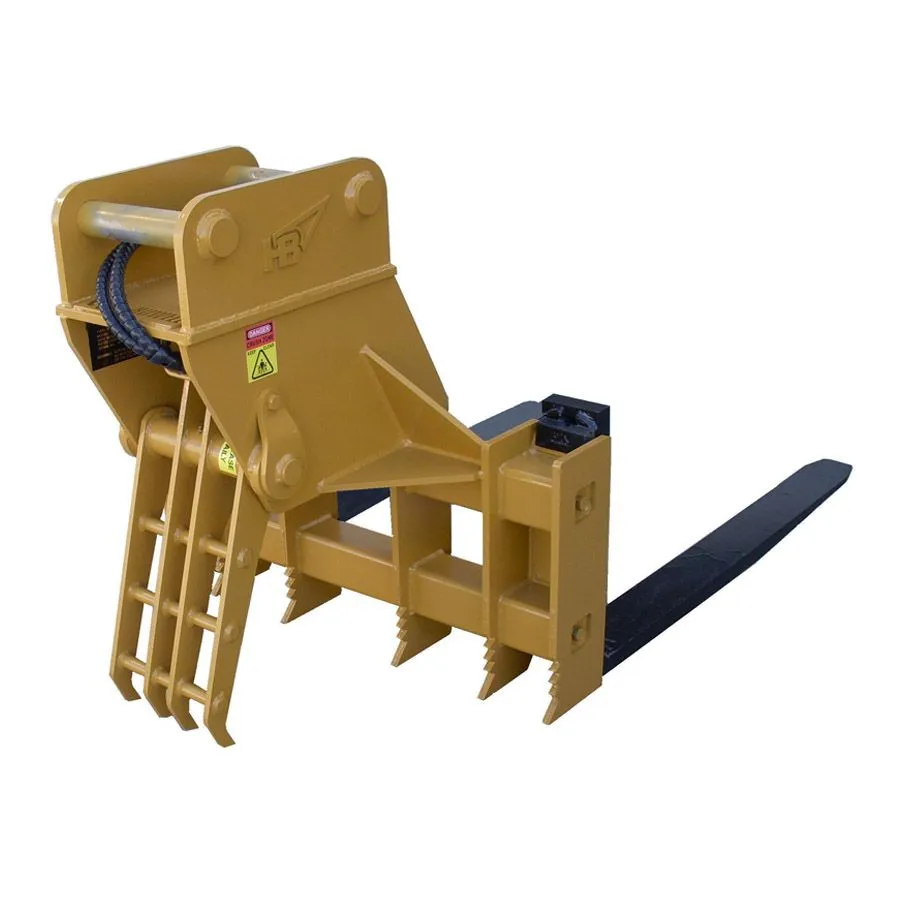

HARRYBILT ENGINEERING FORK GRAB

/

Product Overview

The Fork/Grab has been designed to facilitate the safe and efficient handling of packs of sleepers, but also provides the option to pick up and position single sleepers as required.
The Fork/Grab attachment is particularly suitable for use on 8 to 16 ton excavators.

Note: It is recommended that the fork/ Grab attachment be used with a maximum 16-17 ton excavator fitted with over-centre lockout valves on all boom cylinders and coupled to a rotating head attachment.

Key Features

Safe & Efficient Sleeper Handling

Designed to securely lift, transport, and position both single sleepers and full packs with precision and control.

Optimised for 8–16T Excavators

Engineered for seamless compatibility with 8–16 tonne excavators, delivering reliable performance across rail and civil construction projects.

High-Capacity, Heavy-Duty Design

Rated to 2,500 kg WLL @ 0.5 m with a robust 360 kg tare weight, featuring 1,200 mm tynes for stable and efficient load handling.

Specifications

	ADJUSTABLE FORK GRAB
Attachment Weight (KG)	420
Oil flow (LPM)	N/A
Oil Pressure (PSI)	1000-2600 PSI
Excavator Class (Tons)	14t

Industry

Construction

Rail

Tunneling

Type

Fork

Machine

Excavator
