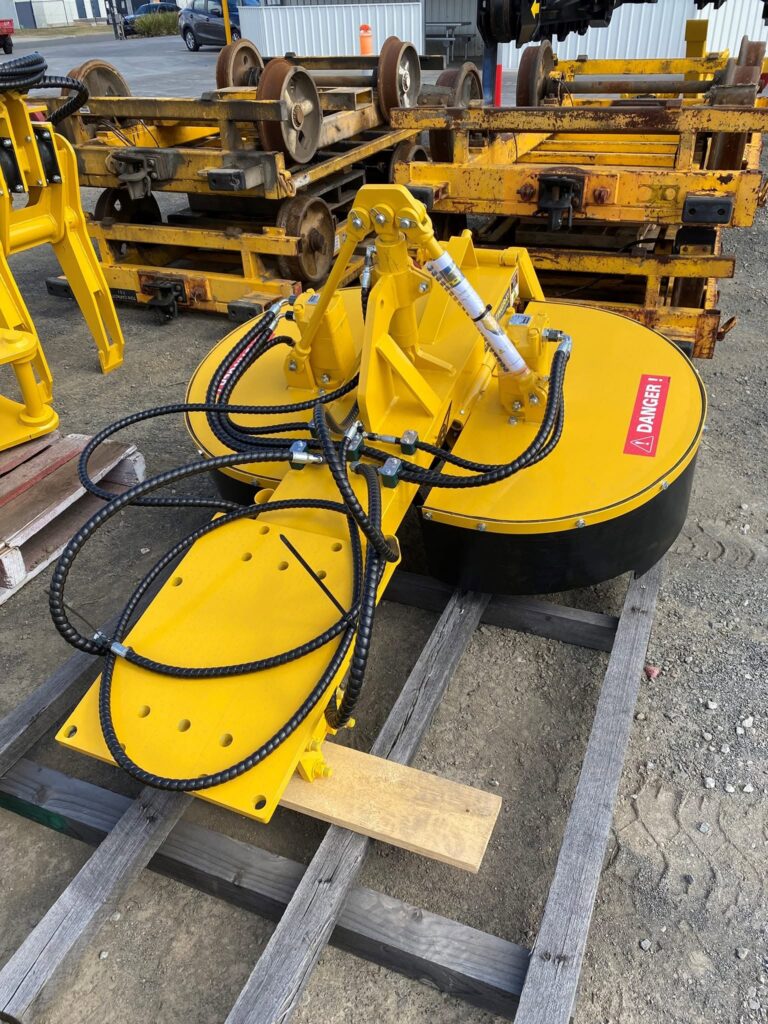

HARRYBILT ENGINEERING BALLAST SWEEPER

/

Product Overview

The Ballast Sweeper has been designed by Harrybilt Engineering to remove excess ballast from the rail line and sleeper clips.

Motors: 76 lt/min, 310 bar = 191RPM

Key Features

Efficient Ballast Sweeping – Designed to quickly remove loose ballast from either side of the rail without disturbing clips, improving efficiency during rail maintenance.

Versatile & Easy to Operate – Suitable for 5–17T excavators, featuring dual hydraulic counter-rotating brushes, hydraulic brush height adjustment, and a rail-guiding roller for precise operation.

Built for Practicality – Includes an integrated storage stand and optional bolt-on hitch for easy transport and compatibility across multiple excavators.

Specifications

	STINGRAY BALLAST SWEEPER
Attachment Weight (KG)	275
Oil flow (LPM)	40 LPM
Oil Pressure (PSI)	1000-2600 PSI
Excavator Class (Tons)	8t

Industry

Rail

Tunneling

Type

Material Handling

Machine

Excavator
