Key Features
- Use the 4in1 bucket like a GP bucket by keeping the jaws closed and using it to scoop materials.
- Open the jaws on approach to the object you wish to pick up, put the bucket over the object and carefully close the bucket and lift. Always be careful not to pull hefty items out of the ground as this will bow and buckle your bucket in the middle.

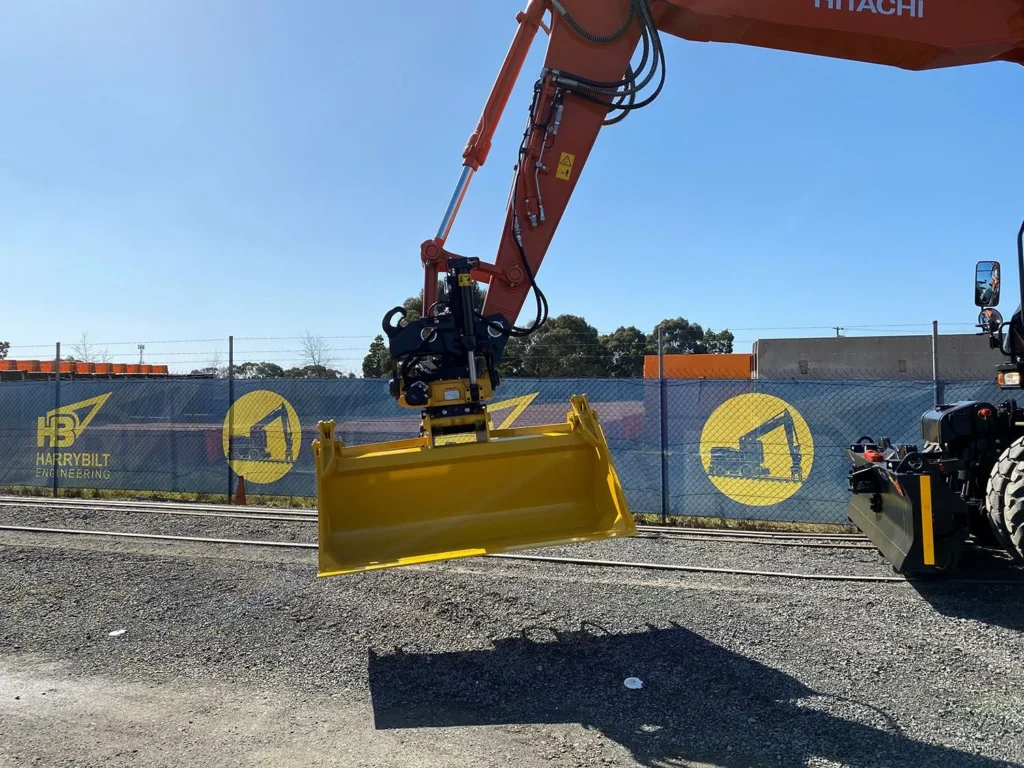

- Fully open the 4 in 1 bucket and position the bucket so that the rear half is vertical. Now the bucket is ready for use as a standard blade.
- Like with the blade option, open the bucket jaws. Crowd the bucket far enough forward that the back cutting edge of the front half of the bucket is touching the ground. Drag the bucket backwards to flatten out the rough spots.
Specifications
| 1700MM | 1800MM HEAVY DUTY | |
| Attachment Weight (KG) | 570 | 640 |
| Oil flow (LPM) | N/A | N/A |
| Oil Pressure (PSI) | 1000-2600 PSI | 1000-2600 PSI |
| Excavator Class (Tons) | 14t | 14t |
