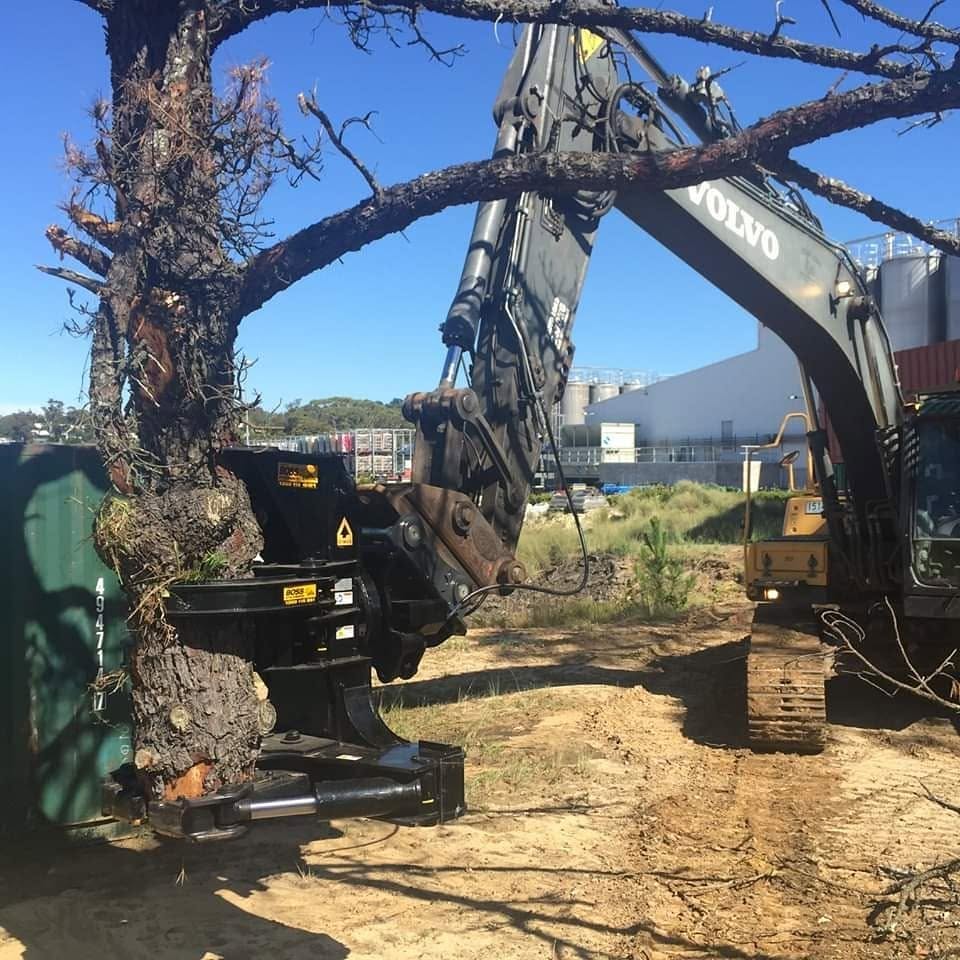

Key Features
- Bolt on replaceable AR400 razor sharp cutting knives yield up to 1,000 hours of performance and are easily sharpened when worn. All cutting knives are adjustable.
- Heavy duty cylinder rams with guarded lines.

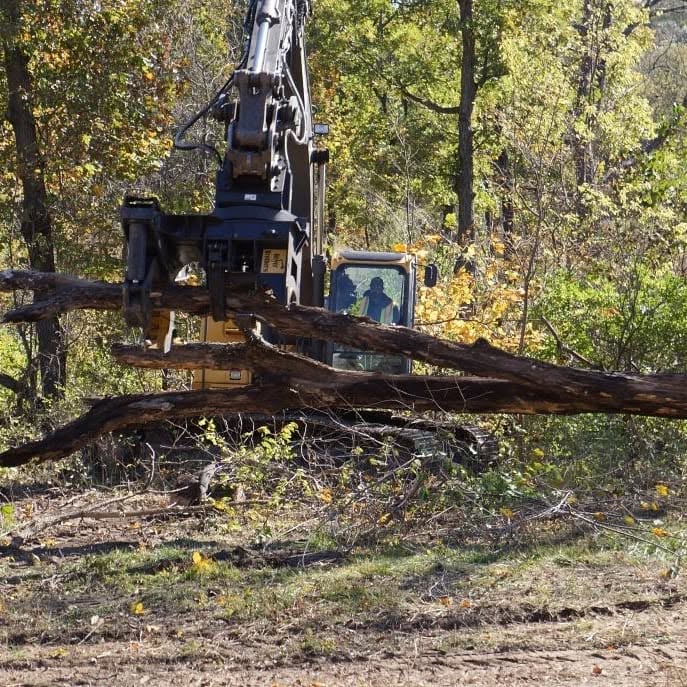

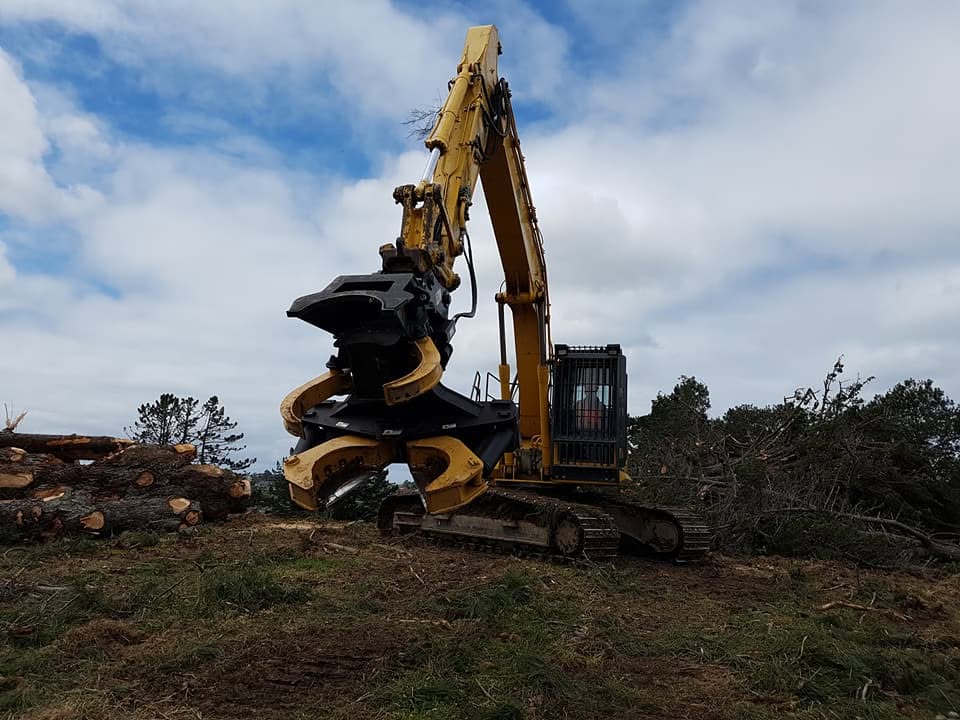

- Two fabricated steel grapple arms secure trees to control felling and are powered by two (2) cylinder rams.
- Heavy duty blade carrier shear arms feature oversized chrome plated pivot pins with replaceable bushings.
- Bolt on guards protect hose lines and all hoses are wrapped with protective covering.
Optional 60° Hydraulic Tilt
Provides up to 60 degrees of tilting performance left and right, allowing operators to adjust during cutting and placement.
Optional Bunching Arm
A bunching arm gatherer that cuts multiple stems in specific operations. Optional single bunching arm available for 14in, 16in and 18in models.
Specifications
| Model | Description | Weight | Min/Max Machine |
|---|---|---|---|
| DX-TS-FG-HPX8 | Tree Shear – Forestry Grapple – HPX | 700-850 5 ton | 8” max diam. cut |
| DX-TS-FG-HPX10 | Tree Shear – Forestry Grapple – HPX | 1,250-1,350 8 ton/BHL | HPX 10” max diam. cut |
| DX-TS-FG-HPX14 | Tree Shear – Forestry Grapple – HPX | 2,650-2,800 14 ton | HPX 14” max diam. cut |
| DX-TS-FG-HPX16 | Tree Shear – Forestry Grapple – HPX | 2,900-3,050 16 ton | 16” max diam. cut |
| DX-TS-FG-HPX18 | Tree Shear – Forestry Grapple – HPX | 4,650-4,750 20 ton | 18” max diam. cut |
| DX-TS-FG-HPX21 | Tree Shear – Forestry Grapple – HPX | 5,800-6,000 25 ton | 21” max diam. cut |
