Key Features
- Simple Rail Guidance System — Economical solution for placing wheel excavators on rail.
- Blade-Mounted Front Guide Wheels — Front rail wheels mount directly to the excavator blade, which stays fully functional for dozing.

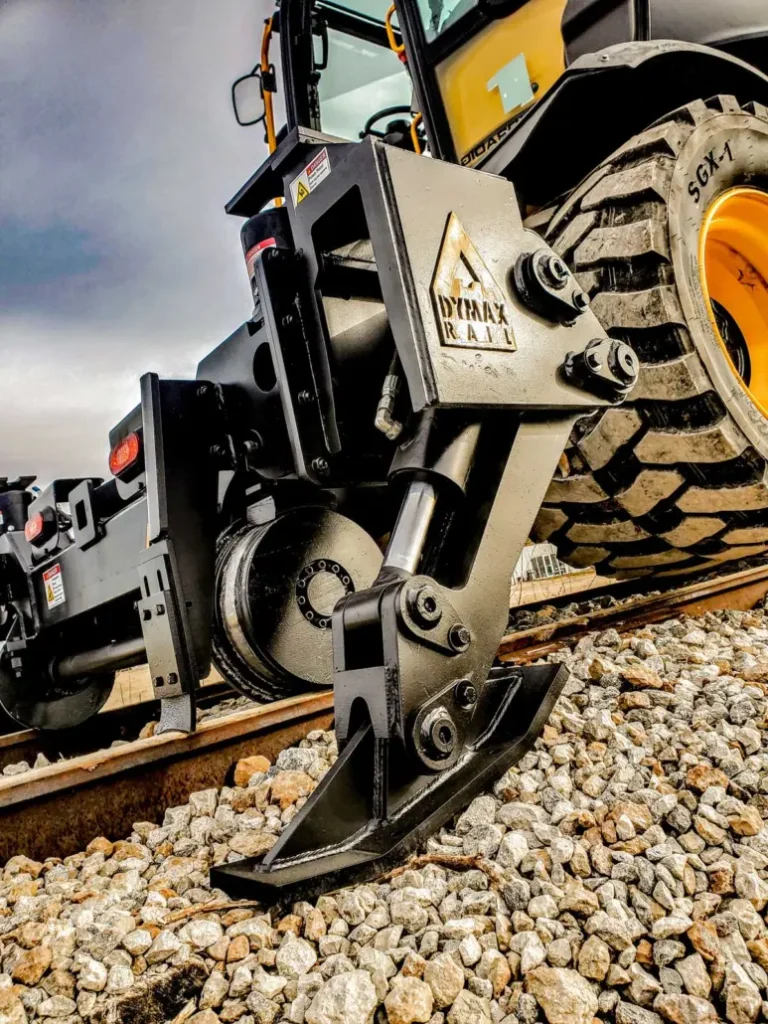

- Stabilizer-Side Rear Railgear — Rear rail wheels mount to the machine’s existing stabilizers using removable, non-welded adapters.
- Minimal Machine Changes — Adds rail capability without the complexity of a full hi-rail conversion.
- Simple & Familiar Controls — Easy operation designed around existing excavator functions.
- Cost-Effective Rail Access — Ideal for contractors seeking occasional or light-duty rail guidance capability.
Specifications

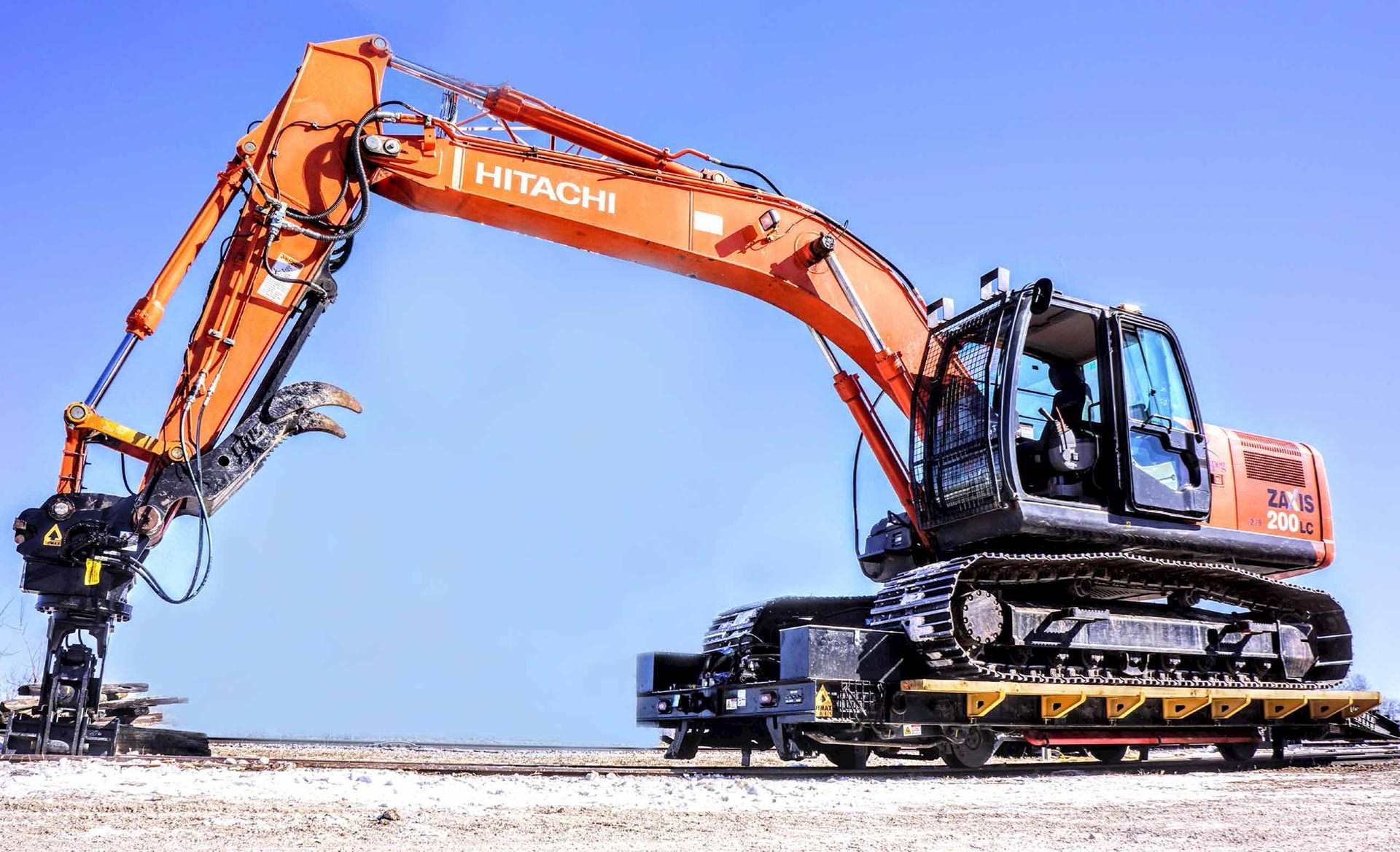

| RAIL RIDER MPX FOR 8T-36T EXCAVATOR MACHINES | |||||
|---|---|---|---|---|---|
| Model / Series Drive Type |
MPX810 2WD |
MPX1214 2WD / 4WD |
MP1620 2WD / 4WD |
MP2530 2WD / 4WD |
MP3600 4WD |
| Excavator Size (tons) MAX | 8T | 12-14-15T | 16-18-20T | 25-30T | 36T |
| Deck Size (feet) width Deck Size (feet) length Ramps (feet) lengthDecking material |
8′ 10′ 3’Hardwood/Tread Plate Combination |
8’4″ 13′ 3’Hardwood/Tread Plate Combination |
8’4″ + 19″ outboards 16′ 3’Hardwood/Tread Plate Combination |
8’4″ + 19″ outboards 18′ 3’Hardwood/Tread Plate Combination |
8’4″ + 19″ outboards 20′ 3’Hardwood/Tread Plate Combination |
| Speed Max 2WD (mph) Speed Max 4WD (mph) |
11-13 5-7 |
11-13 5-7 |
11-13 5-7 |
11-13 5-7 |
11-13 5-7 |
| The speed above is approximate. Details will vary depending on age of machine and brand and overall pump performance. Wind, wet rail and other variables all limit performance on rail. |
|||||
| Stabilizer/Clamps | 4x stabilizer | 4x stabilizer | 4x stabilizer 2x clamp |
4x stabilizer 2x clamp |
4x stabilizer 2x clamp |
| MAX GVW (lbs) | 30,000 | 40,000 | 60,000 | 80,000 | 95,000 |
| Weight (lbs) | 5,400 – 6,000 | 7,900 – 8,500 | 11,000 – 12,000 | 15,000 – 16,000 | 19,000 – 20,000 |
| Weights are approximate and vary depending upon exact specifications and options included. | |||||
| Specifications subject to change without notice. Contact DymaxRail for control group details. | |||||
